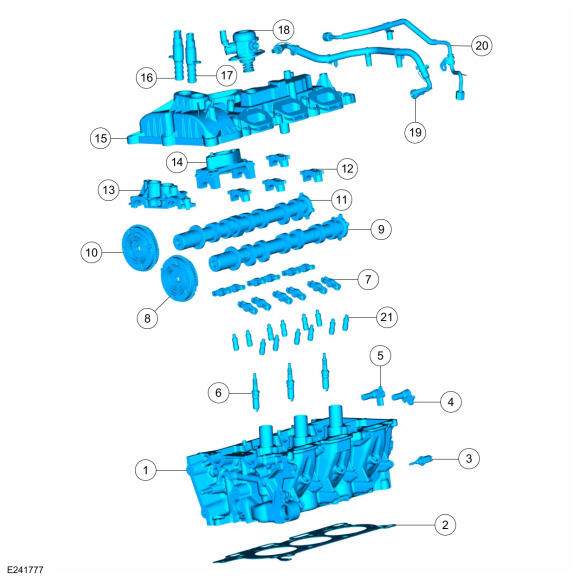

Exploded View Of Engine Upper -- RH Cylinder Head
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6049 | RH cylinder head |
| 2 | 6051 | RH cylinder head gasket |
| 3 | 6G004 | Cylinder head temperature sensor |
| 4 | 12K073 | RH Intake camshaft position (CMP) sensor |
| 5 | 12K073 | RH Exhaust camshaft position (CMP) sensor |
| 6 | 12405 | Spark plug (3 required) |
| 7 | 6529 | Rocker arm (12 required) |
| 8 | 6C524 | Intake camshaft VCT unit |
| 9 | 6A266 | Intake camshaft |
| 10 | 6C525 | Exhaust camshaft VCT unit |
| 11 | 6A268 | Exhaust camshaft |
| 12 | 6A258 | Camshaft cap (4 required) |
| 13 | 6B280 | Camshaft mega cap |
| 14 | 6B284 | Camshaft bearing cap |
| 15 | 6582 | RH valve cover |
| 16 | 6B297 | Exhaust camshaft VCT oil control solenoid |
| 17 | 6B297 | Intake camshaft VCT oil control solenoid |
| 18 | 9D376 | High pressure fuel pump |
