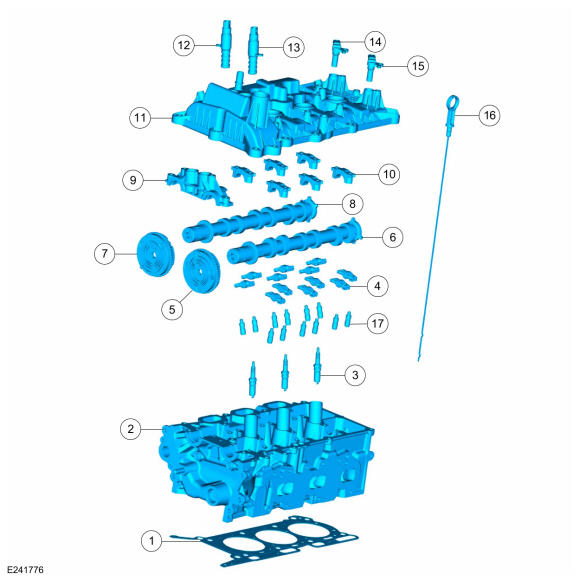

Exploded View Of Engine Upper -- LH Cylinder Head
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6083 | LH cylinder head gasket |
| 2 | 6050 | LH cylinder head |
| 3 | 12405 | Spark plug (3 required) |
| 4 | 6529 | Rocker arm (12 required) |
| 5 | 6C525 | Exhaust camshaft VCT unit |
| 6 | 6A269 | Exhaust camshaft |
| 7 | 6C254 | Intake camshaft VCT unit |
| 8 | 6A267 | Intake camshaft |
| 9 | 6B281 | Camshaft mega cap |
| 10 | 6A258 | Camshaft cap (6 required) |
| 11 | 6582 | LH valve cover |
| 12 | 6B297 | Intake camshaft VCT oil control solenoid |
| 13 | 6B297 | Exhaust camshaft VCT oil control solenoid |
| 14 | 12K073 | LH Intake camshaft position (CMP) sensor |
| 15 | 12K073 | LH Exhaust camshaft position (CMP) sensor |
| 16 | 6750 | Oil level indicator |
| 17 | 6C501 | Hydraulic lash adjuster (12 required) |
