Ignition Coil-On-Plug: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Right side

NOTE: The upper intake manifold must be removed to access the RH ignition coil-on-plugs. Right side

Remove the upper intake manifold. Refer to: Upper Intake Manifold .
Both sides

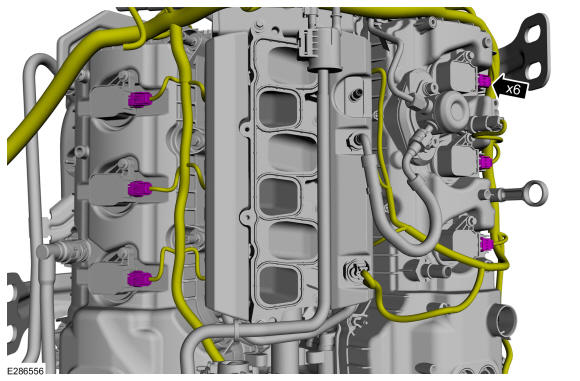

Disconnect the ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

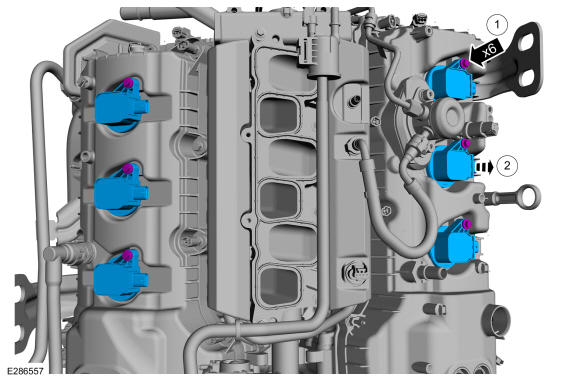

- Remove the ignition coil-on-plug bolts.
- Remove the ignition coil-on-plugs.

Courtesy of FORD MOTOR COMPANY
