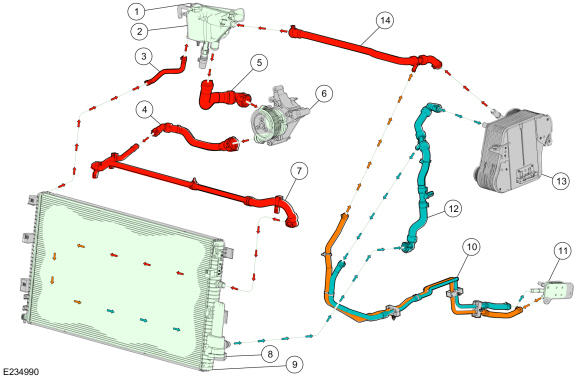

Powertrain Secondary Cooling Exploded View
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Pressure relief cap |
| 2 | Degas bottle |
| 3 | Degas bottle-to-radiator hose |
| 4 | Coolant pump-to-radiator supply hose |
| 5 | Degas bottle-to-coolant pump hose |
| 6 | Coolant pump |
| 7 | Coolant crossover hose assembly |
| 8 | Thermostat |
| 9 | Radiator |
| 10 | Fuel cooler inlet hose |
| 11 | Fuel Cooler |
| 12 | CAC inlet hose |
| 13 | CAC |
| 13 | CAC outlet hose |
