Cooling Module: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .

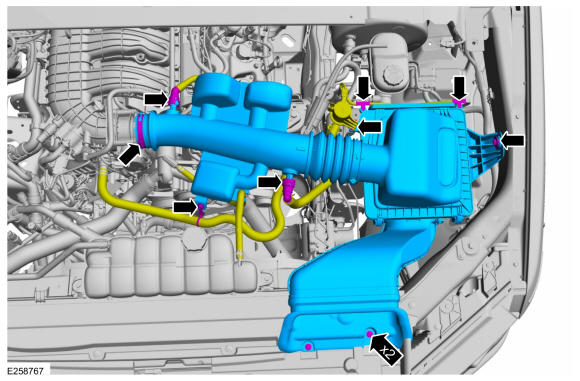

Position aside the coolant tube. Disconnect and position aside the brake booster and the crankcase ventilation tubes. Loosen the clamp and remove the retainers and the air cleaner and outlet pipe assembly.
Torque

: Clamp: 36 lb.in (4.1 Nm) | Bolt: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY

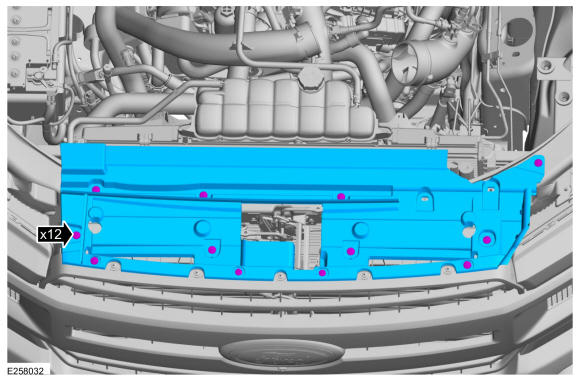

Remove the pin-type retainers and the upper radiator air deflector.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and position the degas bottle aside.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors, detach the pin-type retainers and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY
Remove both headlamp assemblies. Refer to: Headlamp Assembly .
Remove the radiator grille. Refer to: Radiator Grille .
Detach the hood latch cable retainer.

Courtesy of FORD MOTOR COMPANY
Remove the hood latch assembly. Refer to: Hood Latch .

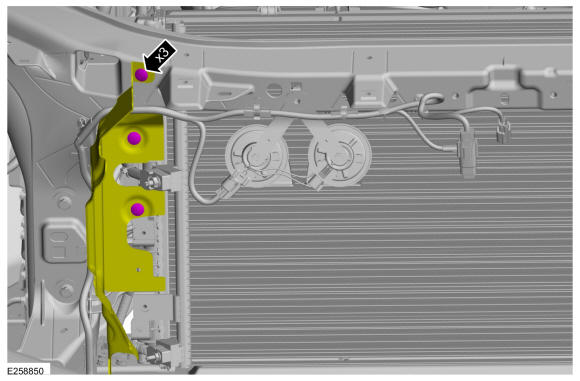

Remove the pin-type retainers and position the air deflector aside.

Courtesy of FORD MOTOR COMPANY
Detach the battery cable pin-type retainer.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors. Detach the electrical connector and wiring harness retainers. Position the wiring harness between the radiator and the radiator grille support.

Courtesy of FORD MOTOR COMPANY
Remove the condenser inlet and outlet nuts and disconnect the fittings.
Torque

: 1: 71 lb.in (8 Nm) | 2: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Release the clamps and disconnect the upper radiator hose and the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Pull the lower radiator hose spring clip until the end of the clip is in the detent on the quick connect coupling and disconnect the lower radiator hose.

Courtesy of FORD MOTOR COMPANY

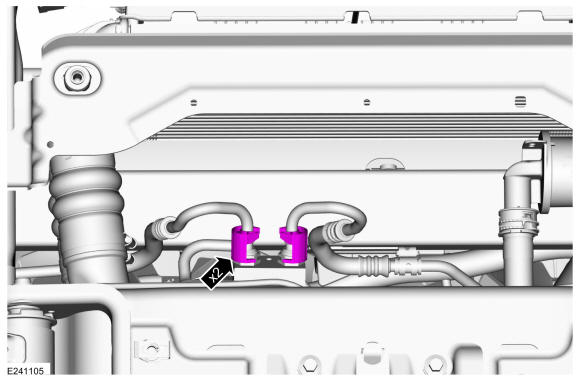

Remove the transmission fluid cooler tube secondary latches.

Courtesy of FORD MOTOR COMPANY

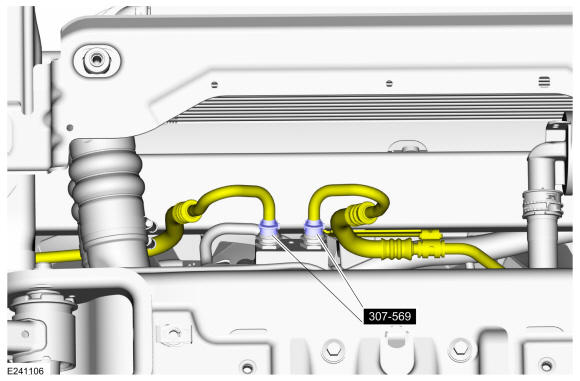

Using the special tool, disconnect the transmission fluid cooler tube quick connect couplings. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY

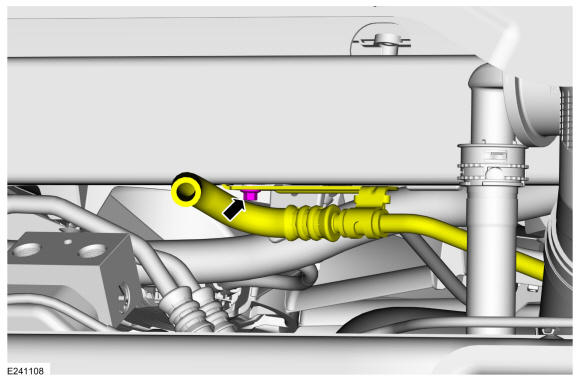

Remove the transmission cooler lines bracket retainer from the crossmember.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

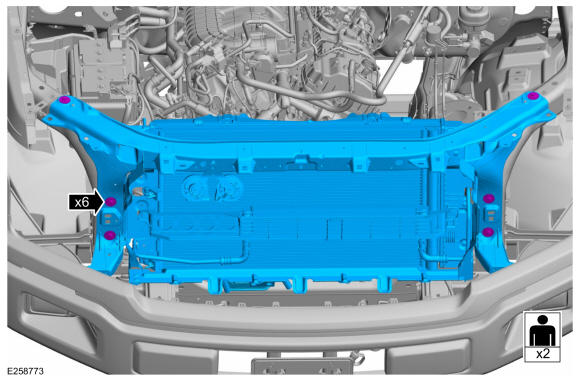

Remove the retainers and the cooling module.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
