Valve Tappets: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The valve tappets must be installed in their original positions.

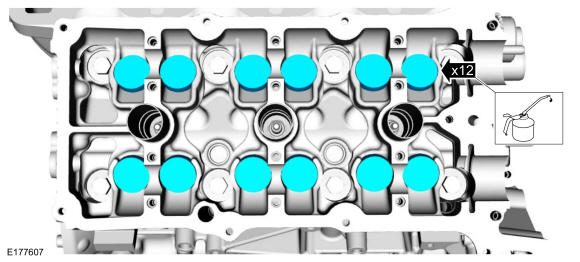

NOTE: RH shown, LH similar.

Lubricate the valve tappets with clean engine oil and install the valve tappets.

Courtesy of FORD MOTOR COMPANY
Install the RH or LH camshafts. Refer to: Camshafts .
Road test the vehicle.
