Valve Cover RH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Installation of new spark plug seals or VCT seals is only required if seals are damaged.
  1. Remove the RH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
  2. Follow directions to release the quick release coupling type 3. Remove the PCV tube. Refer to: Quick Release Coupling .
    GFD459646Courtesy of FORD MOTOR COMPANY
  3. Remove the nut from the RH valve cover stud bolt and position the ground strap aside.
    GFD459647Courtesy of FORD MOTOR COMPANY
  4. Detach the wiring harness retainer from the rear valve cover stud bolt.
    GFD459648Courtesy of FORD MOTOR COMPANY
  5. Disconnect the EGR valve wiring harness connector and detach the retainers.
    GFD459649Courtesy of FORD MOTOR COMPANY
    • Disconnect the VCT oil control solenoid electrical connectors.

    • Detach the wiring harness retainers from valve cover.

    GFD459650Courtesy of FORD MOTOR COMPANY
  7. Remove the nut, bolts and position the EGR valve and bracket aside.
    GFD459651Courtesy of FORD MOTOR COMPANY

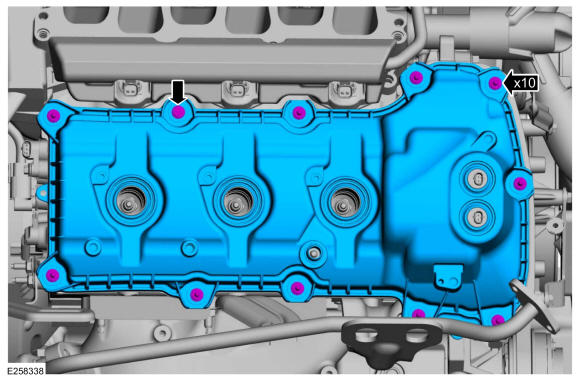

  8. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
    NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the bolts and remove the valve cover.

    GFD459652Courtesy of FORD MOTOR COMPANY
  9. Remove and discard the valve cover gasket.
    GFD459653Courtesy of FORD MOTOR COMPANY
  10. NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

    If necessary, using the special tools, remove the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

    GFD459654Courtesy of FORD MOTOR COMPANY
  11. NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

    If necessary, using the special tools, remove the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

    GFD459655Courtesy of FORD MOTOR COMPANY
  12. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD459656Courtesy of FORD MOTOR COMPANY
