Upper Intake Manifold: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

Inspect the intake manifold for damage or metal debris.

Courtesy of FORD MOTOR COMPANY
Install the new upper intake manifold gaskets.

Courtesy of FORD MOTOR COMPANY
Install the upper intake manifold and tighten the bolts in sequence shown below.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

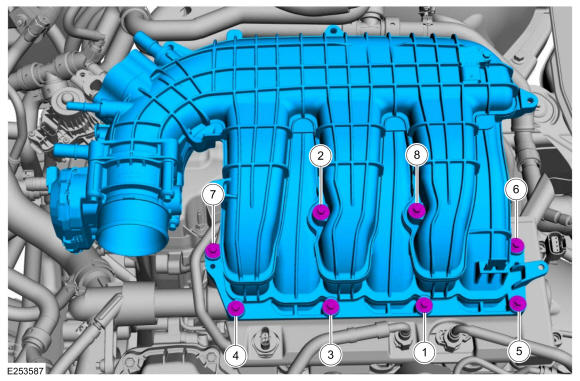

Fig 1: Upper Intake Manifold Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install a new exhaust manifold tube gasket.

Courtesy of FORD MOTOR COMPANY
Install the EGR valve to exhaust manifold tube bolts finger tight.

Courtesy of FORD MOTOR COMPANY
- Install new EGR tube O-ring seal and gasket.
- Lubricate the O-ring seal with clean engine oil.
Courtesy of FORD MOTOR COMPANY
1. Install the EGR tube and the bolts finger tight.
2. Install the EGR tube to EGR valve bolts finger tight.
Courtesy of FORD MOTOR COMPANY
1. Tighten the EGR tube bolts.
  Torque: 89 lb.in (10 Nm)
2. Tighten the EGR tube to EGR valve bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
- Install the hoses, EGR transducer and the bolt.
  Torque: 80 lb.in (9 Nm)
- Connect the EGR transducer electrical connector.
Courtesy of FORD MOTOR COMPANY

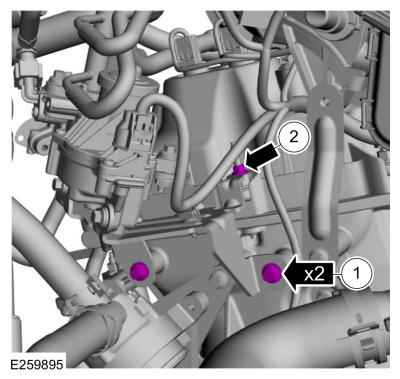

1. Tighten the EGR valve bracket bolts.
  Torque: 89 lb.in (10 Nm)
2. Tighten the EGR valve bracket nut.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

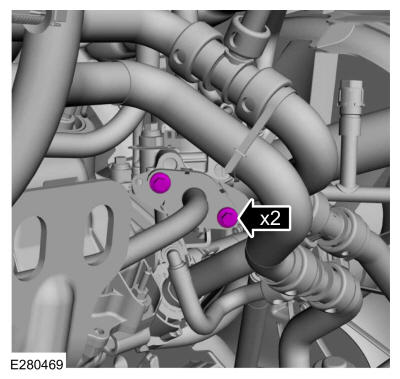

Tighten the EGR valve to exhaust manifold tube bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the coolant hose retainers to the intake manifold.

Courtesy of FORD MOTOR COMPANY
Connect the PCV tube quick connect coupling to the intake manifold.

Courtesy of FORD MOTOR COMPANY

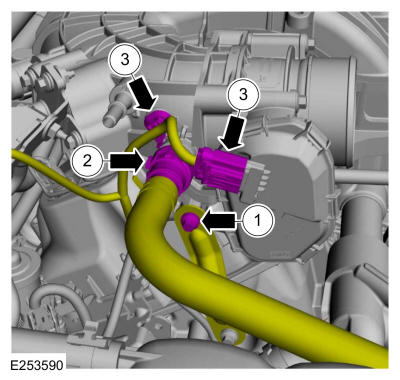

1. Install the upper intake manifold support bracket bolt.
  Torque: 89 lb.in (10 Nm)
2. Connect the brake vacuum tube quick release coupling to the intake manifold. Refer to: Quick Release Coupling .
3. Connect the throttle body electrical connector and wire harness retainer.
Courtesy of FORD MOTOR COMPANY

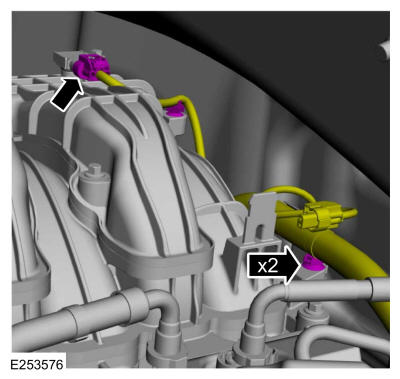

- Connect the MAP sensor electrical connector.
- Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

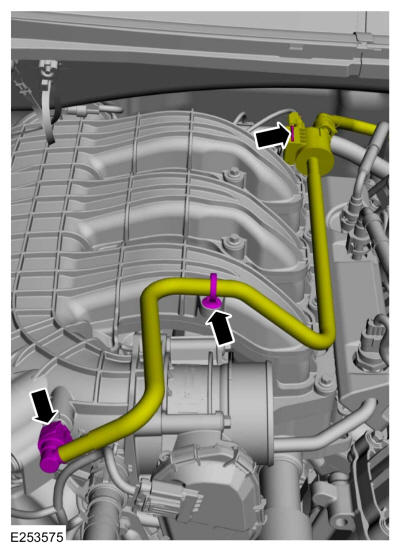

- Position and attach the EVAP canister purge valve.
- Attach the EVAP canister purge valve tube retainer to the intake manifold.
- Connect the EVAP canister purge valve tube quick connect coupling to the intake manifold.
Courtesy of FORD MOTOR COMPANY

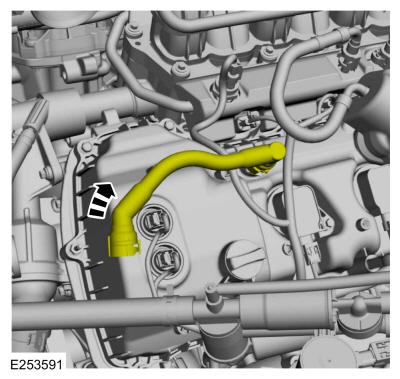

Position the crankcase vent tube towards the intake manifold.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
