Timing Chain: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

NOTE: Five or more teeth visible on the timing chain tensioner can be an indication of excessive wear of the timing chain and/or arms and guides.

Remove the engine front cover. Refer to: Engine Front Cover .
Install the original crankshaft pulley bolt and washer.

Courtesy of FORD MOTOR COMPANY
NOTE: Rotate the crankshaft in a clockwise direction only.

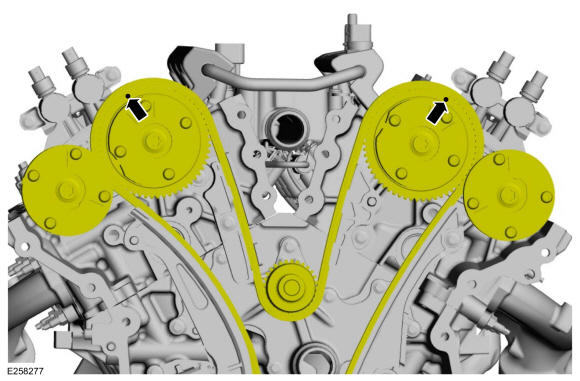

Using the crankshaft bolt, align the timing marks.

Courtesy of FORD MOTOR COMPANY

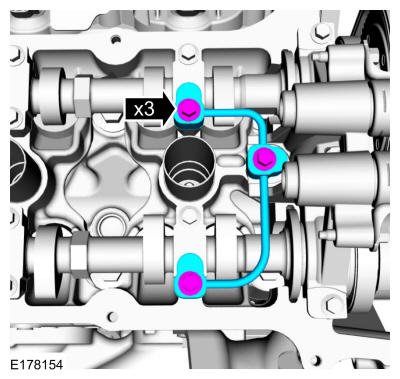

Remove the bolts and the LH oil tube.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

Install Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

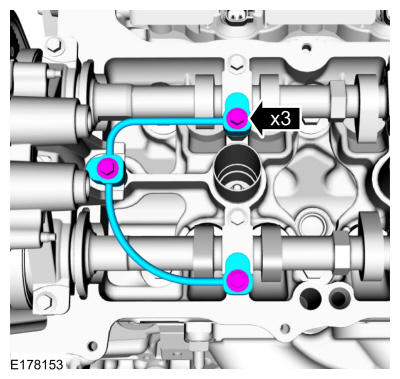

Remove the bolts and the RH oil tube.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

Install Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.
Mark the timing chain link that aligns with the timing mark on the LH intake VCT unit as shown below.

Courtesy of FORD MOTOR COMPANY
Mark the timing chain link that aligns with the timing mark on the RH intake VCT unit as shown below.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

Mark the timing chain links that aligns with the timing mark on the crankshaft sprocket as shown below.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
Remove the timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the lower LH timing chain guide.

Courtesy of FORD MOTOR COMPANY
NOTE: Removal of the VCT oil control solenoid will aid in the removal of the timing chain.

NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoids.

NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

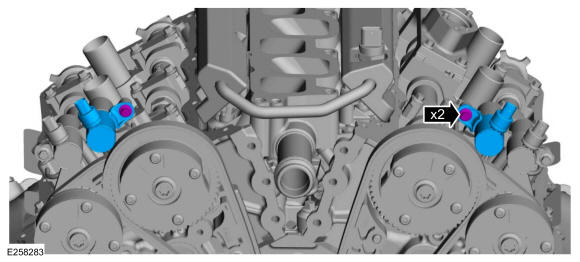

Remove the bolts and the VCT oil control solenoids.

Courtesy of FORD MOTOR COMPANY

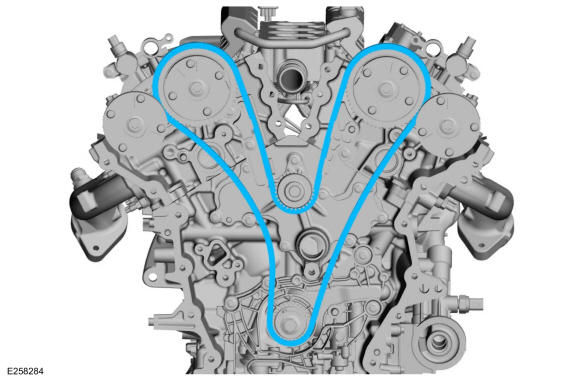

Remove the timing chain.

Courtesy of FORD MOTOR COMPANY
