Oil Pan: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

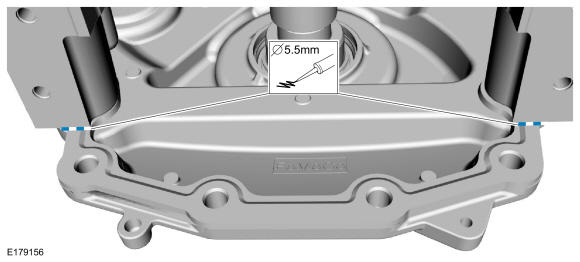

  1. Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft engine front cover-to-cylinder block joint areas.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD459551Courtesy of FORD MOTOR COMPANY

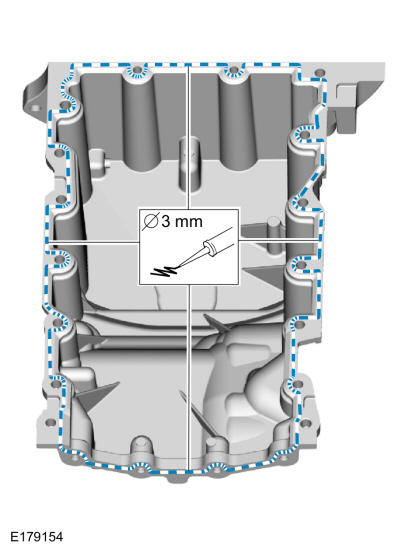

  2. NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

    Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD459552Courtesy of FORD MOTOR COMPANY

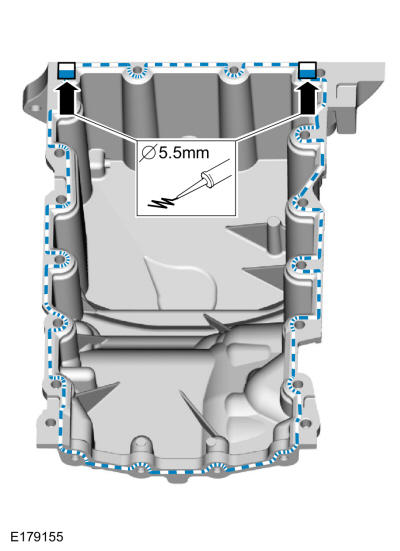

  3. Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD459553Courtesy of FORD MOTOR COMPANY

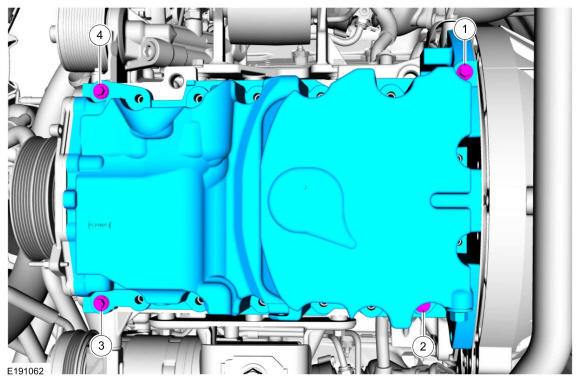

  4. NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.
    NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

    Install the oil pan and the bolts finger tight.

    GFD459554Courtesy of FORD MOTOR COMPANY

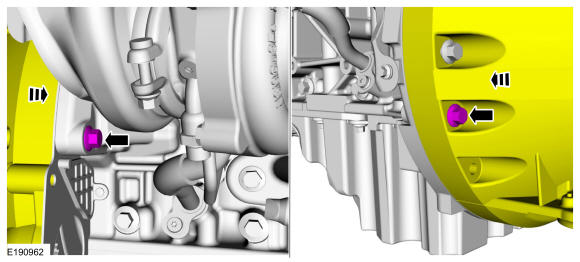

  5. NOTE: Do not torque at this time.

    Draw the transmission and engine together using the bolts.

    GFD459555Courtesy of FORD MOTOR COMPANY

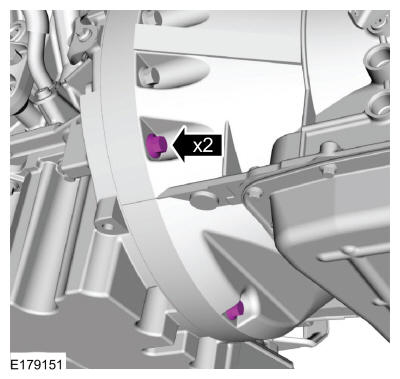

  6. NOTE: Do not torque at this time.

    Install the oil pan bolts.

    GFD459540Courtesy of FORD MOTOR COMPANY

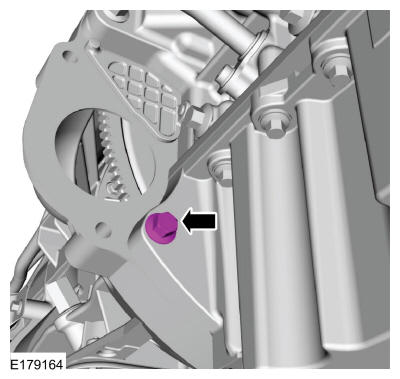

  7. NOTE: Do not torque at this time.

    Install the oil pan bolt.

    GFD459538Courtesy of FORD MOTOR COMPANY

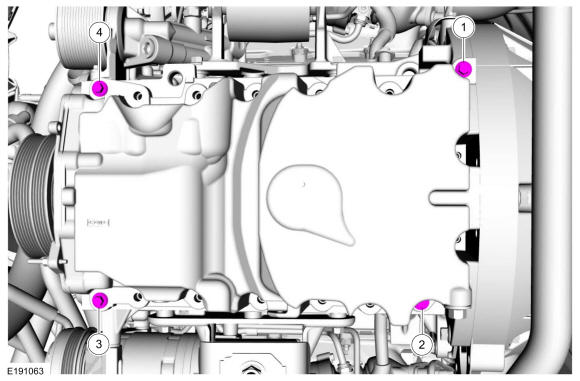

  8. Tighten the oil pan bolts.

    Torque: 27 lb.in (3 Nm)

    GFD459556Courtesy of FORD MOTOR COMPANY

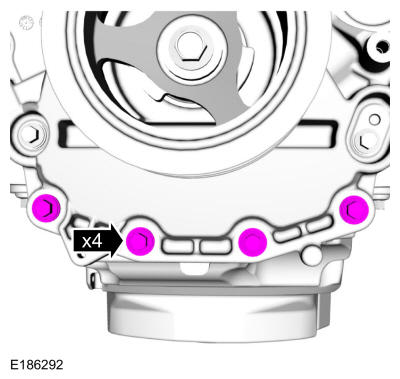

  9. Install the engine front cover bolts finger tight.
    GFD459544Courtesy of FORD MOTOR COMPANY
  10. Install the remaining oil pan bolts and tighten in sequence.

    Torque: Stage 1: Tighten bolts 1-9 and 11-14 to : 177 lb.in (20 Nm) | Stage 2: Tighten bolt 1-9 and 11-14 additional : 45° | Stage 3: Tighten bolt 10 to : 177 lb.in (20 Nm) | Stage 4: Tighten bolt 10 an additional : 45° | Stage 5: Tighten bolts 15 and 16 to : 89 lb.in (10 Nm) | Stage 6: Tighten bolts 15 and 16 an additional : 90°

    Fig 1: Oil Pan Tightening Sequence
    GFD459557Courtesy of FORD MOTOR COMPANY
  11. Tighten the engine front cover bolts.

    Torque: 18 lb.ft (24 Nm)

    GFD459544Courtesy of FORD MOTOR COMPANY

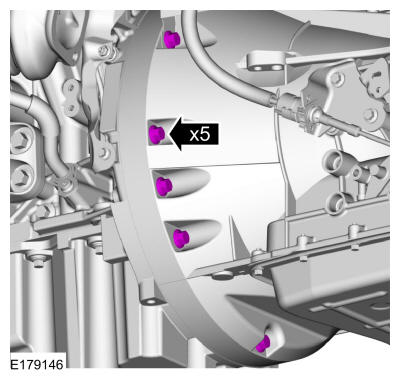

  12. Tighten the oil pan and bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD459558Courtesy of FORD MOTOR COMPANY

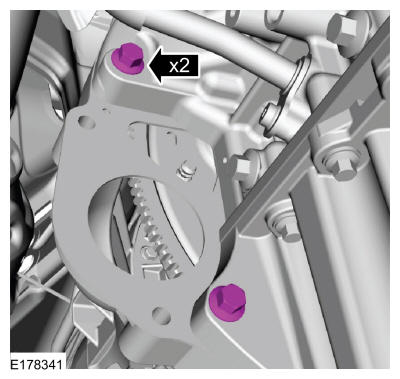

  13. Tighten the oil pan and bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD459559Courtesy of FORD MOTOR COMPANY
    • Remove and discard the transmission mount-to-crossmember nuts.

    • Install new transmission mount-to-crossmember nuts.

      Torque: 85 lb.ft (115 Nm)

    GFD458872Courtesy of FORD MOTOR COMPANY
  14. Attach the generator wiring harness retainer to the engine block.
    GFD459488Courtesy of FORD MOTOR COMPANY

    4x4

  15. NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

    Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

    GFD458896Courtesy of FORD MOTOR COMPANY
  16. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    GFD458951Courtesy of FORD MOTOR COMPANY
  17. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.
    GFD458898Courtesy of FORD MOTOR COMPANY
  18. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458952Courtesy of FORD MOTOR COMPANY
  19. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458953Courtesy of FORD MOTOR COMPANY
  20. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458901Courtesy of FORD MOTOR COMPANY
  21. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands
    GFD458875Courtesy of FORD MOTOR COMPANY
  22. Install the steering gear boot.
    GFD458874Courtesy of FORD MOTOR COMPANY
    1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Install a new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD458902Courtesy of FORD MOTOR COMPANY
  23. Remove the holding device from the steering wheel.
    GFD458607Courtesy of FORD MOTOR COMPANY

    4x2/4x4

  24. Install the crossmember and the nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    GFD459537Courtesy of FORD MOTOR COMPANY
  25. Attach the generator wiring harness to the engine front cover.
    GFD459445Courtesy of FORD MOTOR COMPANY
  26. Position back the engine wire harness, transmission cooler tube bracket and install the nut.

    Torque: 106 lb.in (12 Nm)

    GFD459444Courtesy of FORD MOTOR COMPANY
  27. Position back the ground wire and install the bolt.

    Torque: 18 lb.ft (25 Nm)

    GFD459438Courtesy of FORD MOTOR COMPANY
  28. Position back the wiring harness and install the pin-type retainer.
    GFD459437Courtesy of FORD MOTOR COMPANY
  29. Install the starter motor. Refer to: Starter Motor .
  30. NOTE: Do not lubricate the engine oil filter gasket.

    Install a new oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 180°

    GFD459411Courtesy of FORD MOTOR COMPANY

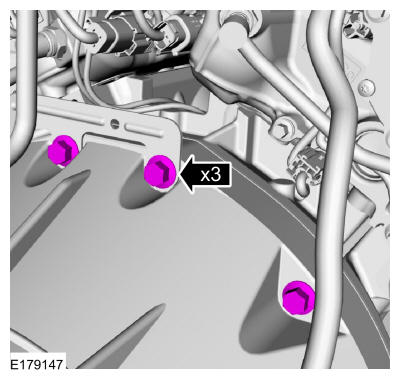

  31. Tighten the upper bell housing-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD459560Courtesy of FORD MOTOR COMPANY
  32. If equipped, install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD459436Courtesy of FORD MOTOR COMPANY
  33. If equipped, install the underbody shield and the bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD458870Courtesy of FORD MOTOR COMPANY
  34. If equipped, install the transmission housing cover and the bolts

    Torque: 71 lb.in (8 Nm)

    GFD458870Courtesy of FORD MOTOR COMPANY

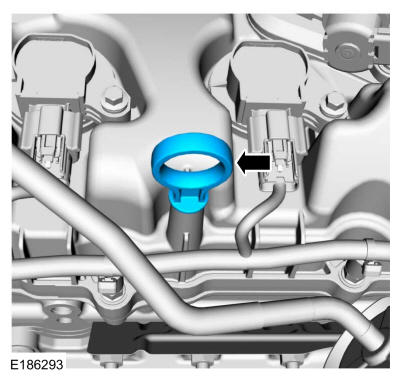

  35. Install the oil level indicator.
    GFD459535Courtesy of FORD MOTOR COMPANY
  36. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD459412Courtesy of FORD MOTOR COMPANY
  37. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
