Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.

Install the flexplate, bolts and tighten in sequence shown below.

Torque: 59 lb.ft (80 Nm)

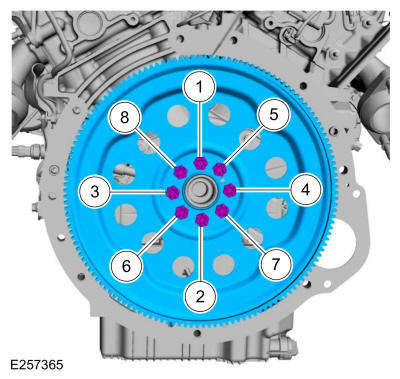

Fig 1: Flexplate Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the automatic transmission. Refer to: Transmission .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
