Exhaust Manifold RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

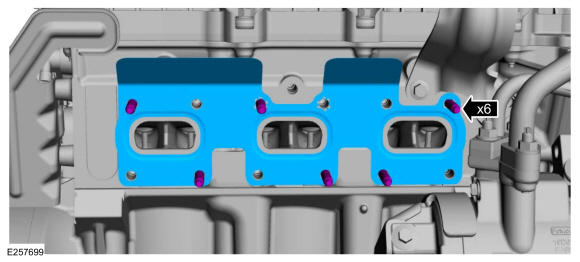

- Install the new exhaust manifold studs.
  Torque: 106 lb.in (12 Nm)
- Install the new exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY
NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.

Install the exhaust manifold and the new nuts.

Torque: Stage 1: 168 lb.in (19 Nm) | Stage 2: 18 lb.ft (25 Nm)

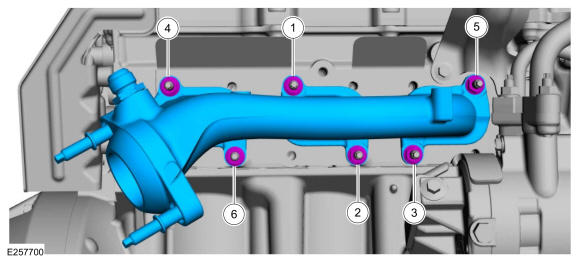

Fig 1: RH Exhaust Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install a new EGR valve to exhaust manifold tube gasket.

Courtesy of FORD MOTOR COMPANY

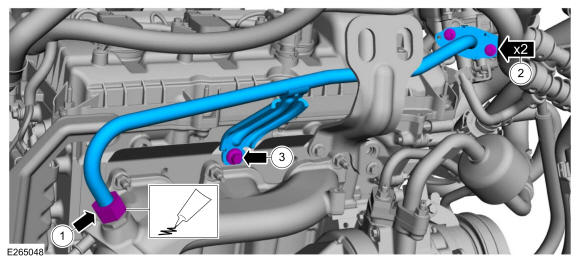

1. NOTE: Apply anti-seize to the EGR exhaust manifold tube nut threads before installation.

  Install the EGR valve to exhaust manifold tube and finger tighten the nut.

  Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

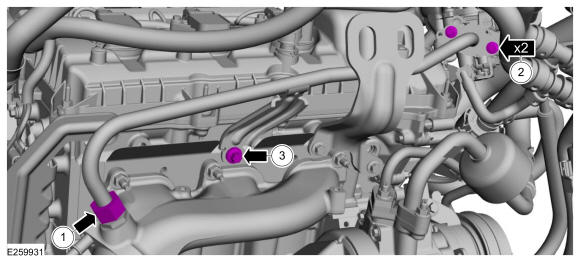

2. Install the EGR valve to exhaust manifold tube bolts finger tight.
3. Install the support bracket bolt finger tight.
Courtesy of FORD MOTOR COMPANY
1. Tighten the EGR valve to exhaust manifold tube nut.
  Torque: 30 lb.ft (40 Nm)
2. Tighten the EGR valve to exhaust manifold tube bolts.
  Torque: 89 lb.in (10 Nm)
3. Tighten the support bracket bolt.
  Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 45°
Courtesy of FORD MOTOR COMPANY
Install the RH fender splash shield. Refer to: Fender Splash Shield .
Install the new RH catalytic converter-to-exhaust manifold nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new LH catalytic converter-to-exhaust manifold nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
- Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
- Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque: 46 lb.ft (63 Nm)
- Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque: 46 lb.ft (63 Nm)
Courtesy of FORD MOTOR COMPANY
If equipped, install the skid plate and the bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield and bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the transmission housing cover and the bolts
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Start the engine and check the exhaust for leaks.
