Engine Mount RH: Installation

4x2/4x4

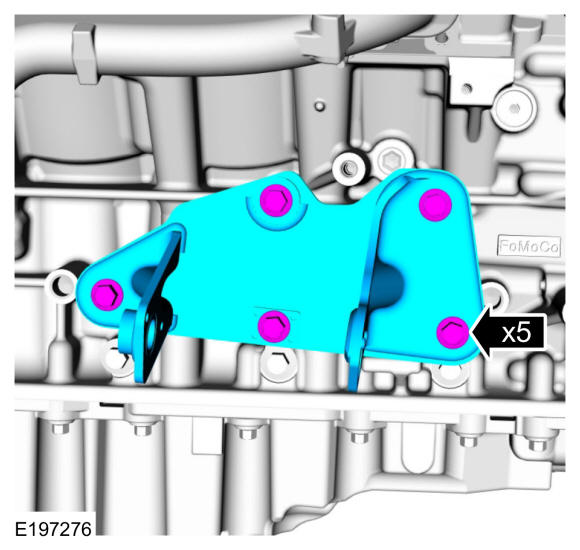

1. NOTE: Clean the engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.

   Position the RH engine mount-to-cylinder block bracket and install the bolts.

   Torque: 57 lb.ft (77 Nm)

   Courtesy of FORD MOTOR COMPANY

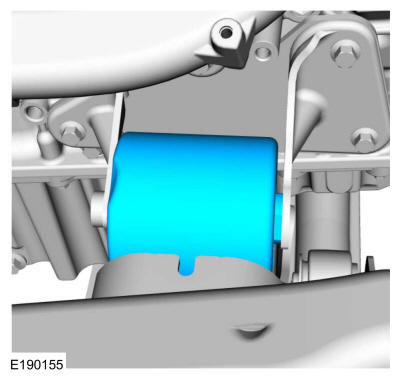

2. NOTE: Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

   Position the RH engine mount into the vehicle.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
   NOTE: Apply threadlock to the stud threads prior to installation.

   Install the engine mount studs.

   Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

   Install the new RH engine mount nuts.

   Torque: 111 lb.ft (150 Nm)

   Courtesy of FORD MOTOR COMPANY

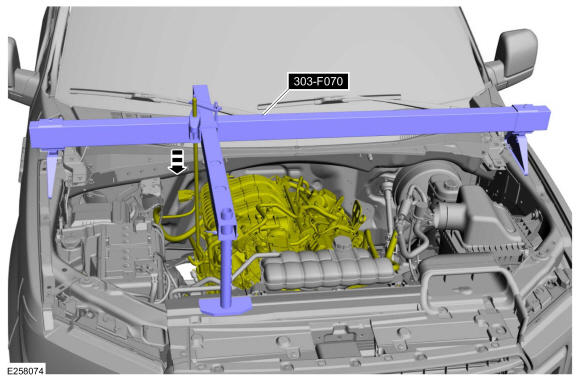

5. Using the engine support bar, lower the engine to the installed position. Use Special Service Tool: 303-F070 Support Bar, Engine.

   Courtesy of FORD MOTOR COMPANY

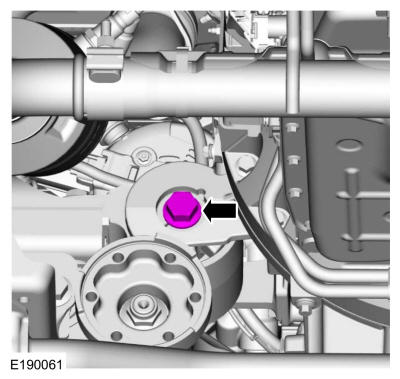

6. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new LH engine mount through bolt.

   Torque: 258 lb.ft (350 Nm)

   Courtesy of FORD MOTOR COMPANY

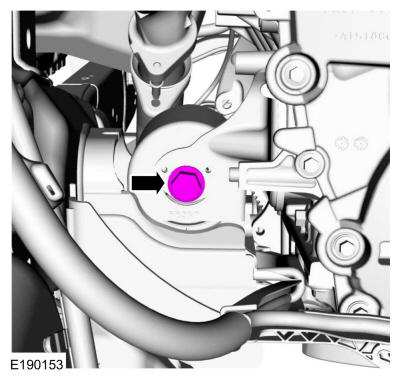

7. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new RH engine mount through bolt.

   Torque: 258 lb.ft (350 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install the starter motor. Refer to: Starter Motor .

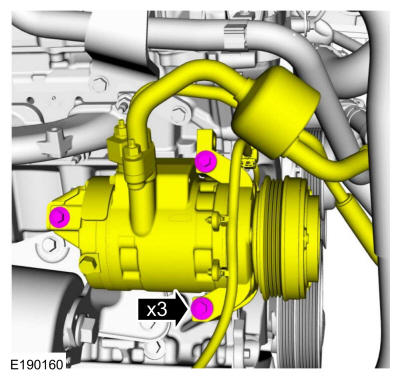

9. Position the A/C compressor and install the bolts.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
11. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Install the new RH catalytic converter-to-exhaust manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the new LH catalytic converter-to-exhaust manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

14. • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
    • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 46 lb.ft (63 Nm)

    • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

    4x4

15. Install the front driveshaft. Refer to: Front Driveshaft .

    4x2/4x4

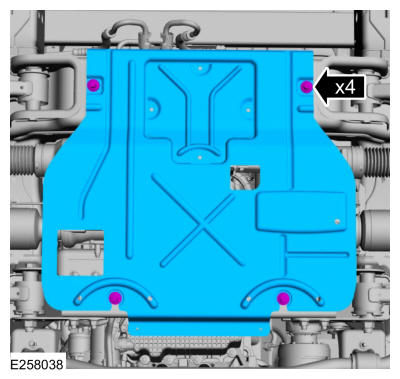

16. If equipped, install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

17. If equipped, install the underbody shield and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

18. If equipped, install the transmission housing cover and the bolts

    Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

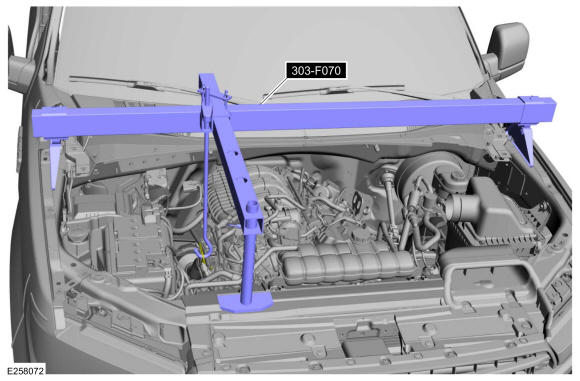

19. Remove Special Service Tool: 303-F070 Support Bar, Engine.

    Courtesy of FORD MOTOR COMPANY

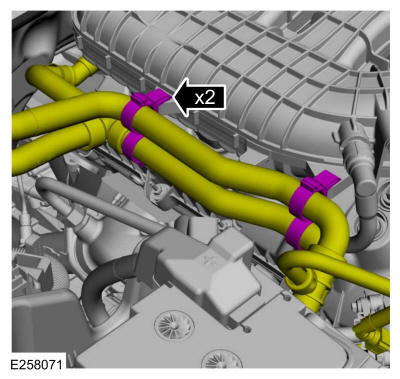

20. Position and install the coolant hose retainers to the intake manifold.

    Courtesy of FORD MOTOR COMPANY

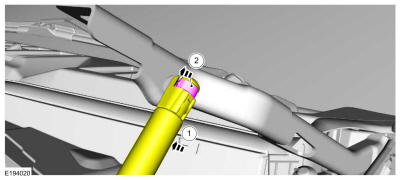

21. NOTE: LH shown, RH similar.
    1. Position the hood shock and attach.
    2. Install the clip.

    Courtesy of FORD MOTOR COMPANY

22. Position the hood and install the nuts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Start and check the exhaust system for leaks.
