Engine Mount LH: Removal

4x2/4x4

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

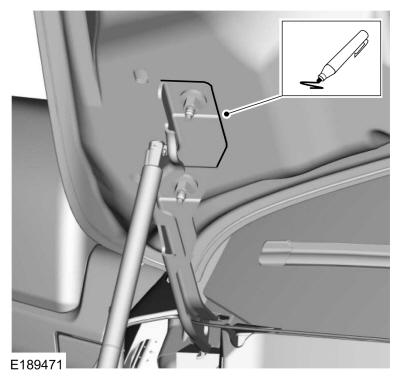

2. NOTE: RH shown, LH similar.

   Index-mark the hood hinge location to aid in hood installation.

   Courtesy of FORD MOTOR COMPANY

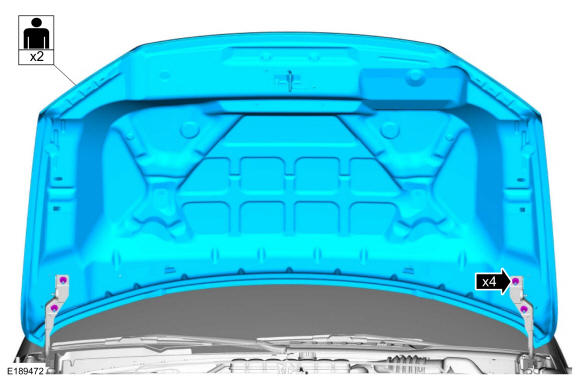

3. Remove the nuts and the hood.

   Courtesy of FORD MOTOR COMPANY

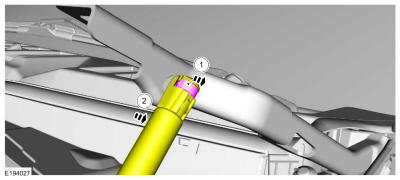

4. NOTE: LH shown, RH similar.
   1. Release the clip.
   2. Detach and position the hood shock aside.

   Courtesy of FORD MOTOR COMPANY

5. Remove the upper intake manifold. Refer to: Upper Intake Manifold .

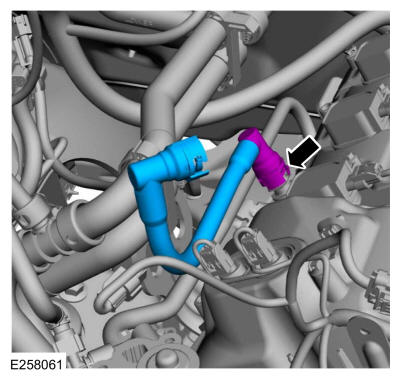

6. Remove the PCV tube.

   Courtesy of FORD MOTOR COMPANY

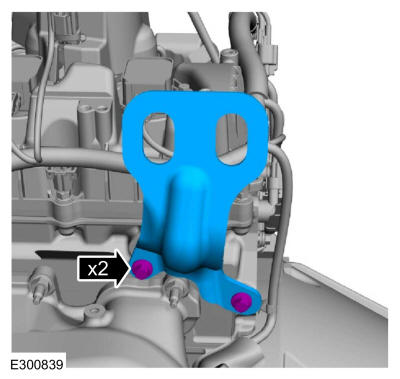

7. Remove the LH engine lift eye.

   Courtesy of FORD MOTOR COMPANY

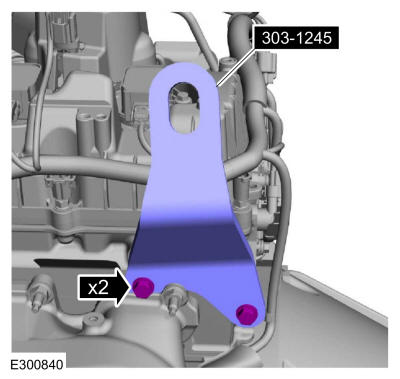

8. Install Special Service Tool: 303-1245 Engine Lift Eye.

   Torque: 18 lb.ft (24 Nm)

   Courtesy of FORD MOTOR COMPANY

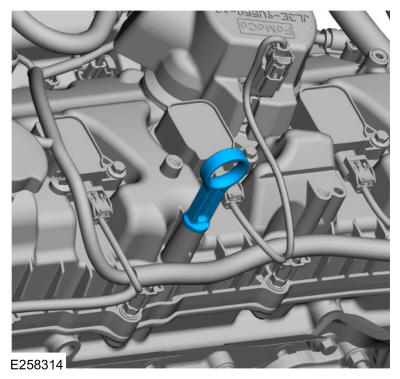

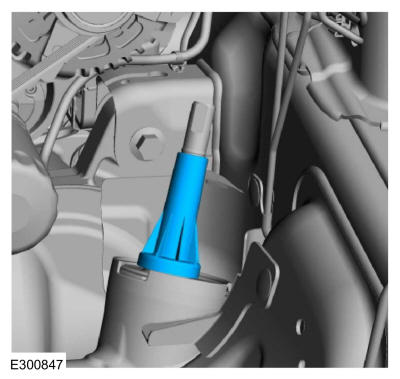

9. Remove the oil level indicator.

   Courtesy of FORD MOTOR COMPANY

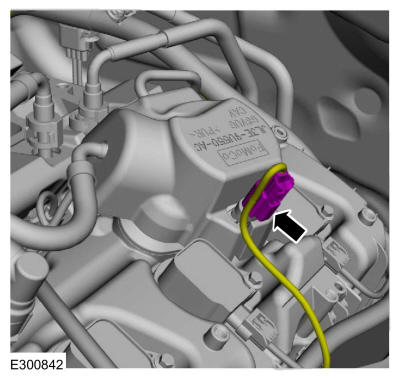

10. Disconnect the high-pressure fuel pump wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

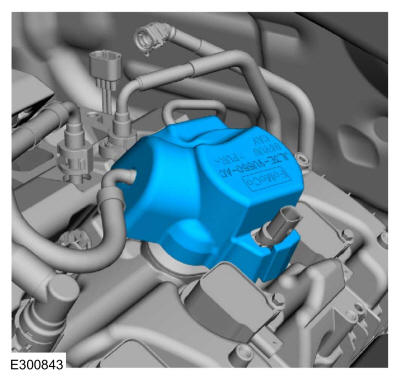

11. NOTE: When removing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Remove the high-pressure fuel pump noise insulator.

    Courtesy of FORD MOTOR COMPANY

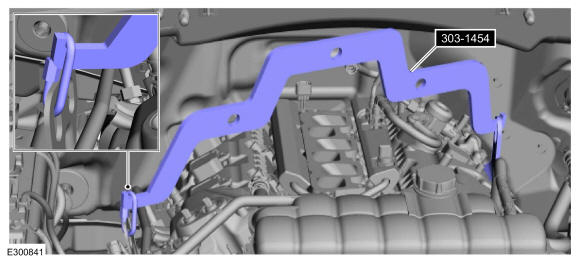

12. Using a D-ring, install the special tool. Install Special Service Tool: 303-1454 Engine Spreader Bar.

    Courtesy of FORD MOTOR COMPANY

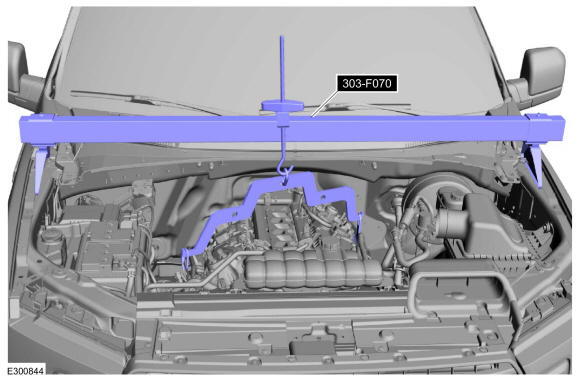

13. Install Special Service Tool: 303-F070 Support Bar, Engine.

    Courtesy of FORD MOTOR COMPANY

14. If equipped, remove the bolts and the transmission housing cover.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Vehicles come with an underbody shield or a skid plate.

    If equipped, remove the bolts and the underbody shield.

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Vehicles come with an underbody shield or a skid plate.

    If equipped, remove the bolts and the skid plate.

    Courtesy of FORD MOTOR COMPANY

    4x4

17. Remove the front driveshaft. Refer to: Front Driveshaft .

    4x2/4x4

18. NOTE: Make sure that the mating faces are clean and free of foreign material.

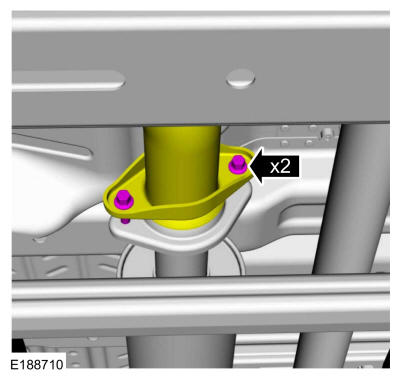

    Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    Courtesy of FORD MOTOR COMPANY

19. NOTE: Make sure that the mating faces are clean and free of foreign material.

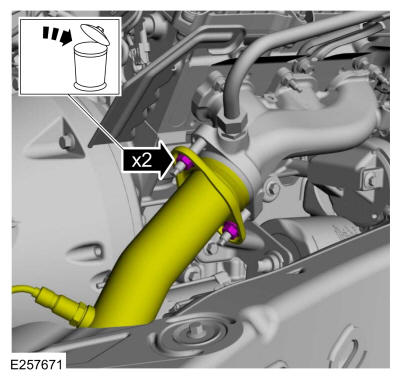

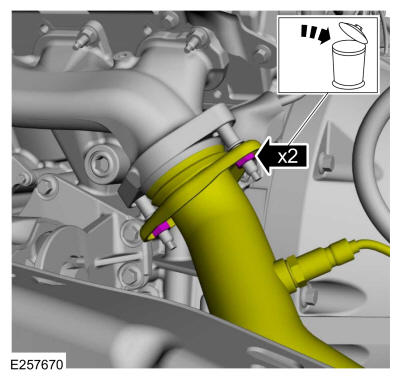

    Remove and discard the LH catalytic converter-to-exhaust manifold nuts.

    Courtesy of FORD MOTOR COMPANY

20. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the RH catalytic converter-to-exhaust manifold nuts.

    Courtesy of FORD MOTOR COMPANY

21. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Only use hand tools when removing the engine mount nuts, studs or damage to the engine mount can occur.
    • Remove and discard the RH engine mount nuts.
    • Remove the RH engine mount studs.

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.
    NOTE: 4x4 shown, 4x2 similar.

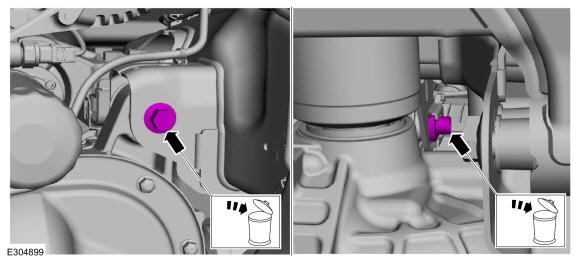

    Remove and discard the LH engine mount through bolt.

    Courtesy of FORD MOTOR COMPANY

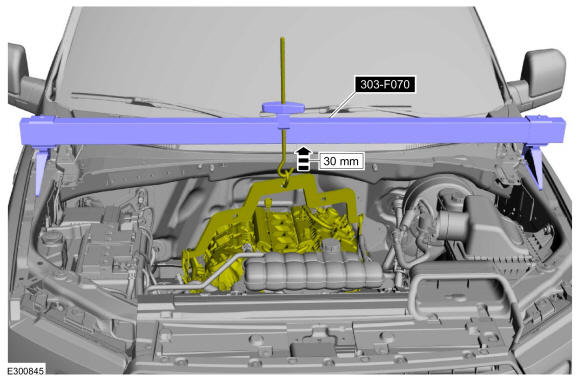

24. Using the engine support bar, raise the engine approximately 30 mm (1.18 in). Use Special Service Tool: 303-F070 Support Bar, Engine.

    Courtesy of FORD MOTOR COMPANY

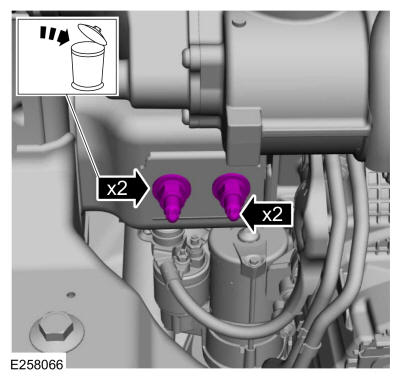

25. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

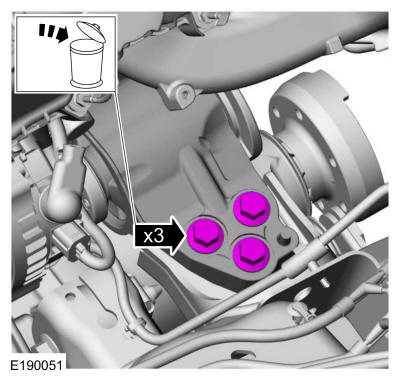

    Remove and discard the LH engine mount-to-frame bolts.

    Courtesy of FORD MOTOR COMPANY

    4x4

26. Using a holding device, hold the steering wheel in the straight-ahead position.

    Courtesy of FORD MOTOR COMPANY

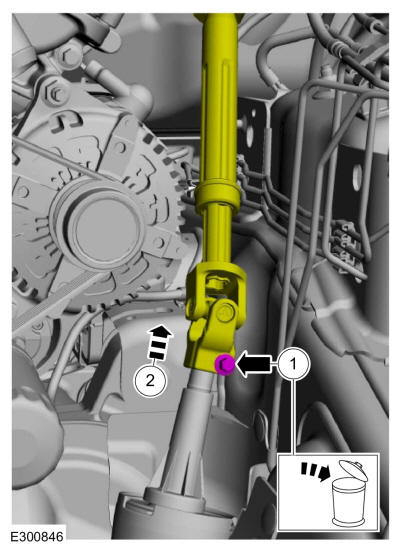

27. 1. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

       Remove and discard the steering column shaft bolt.

    2. Separate the steering column shaft U-joint from the steering gear.

    Courtesy of FORD MOTOR COMPANY

28. Remove the steering gear boot.

    Courtesy of FORD MOTOR COMPANY

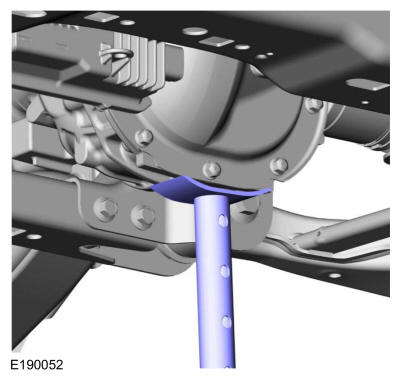

29. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

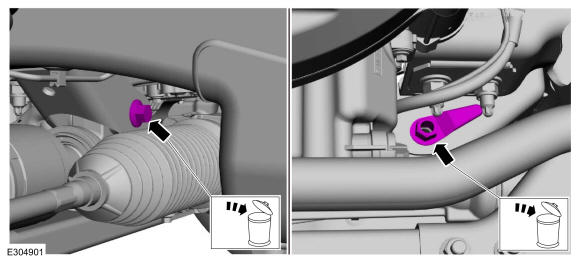

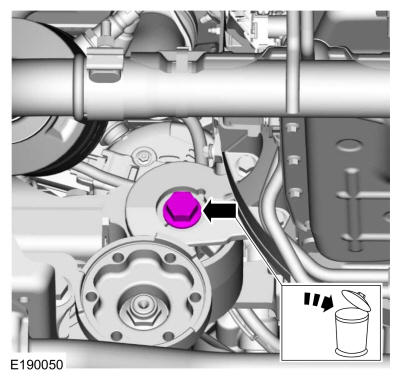

30. Remove and discard the lower front axle carrier mounting bushing bolt.

    Courtesy of FORD MOTOR COMPANY

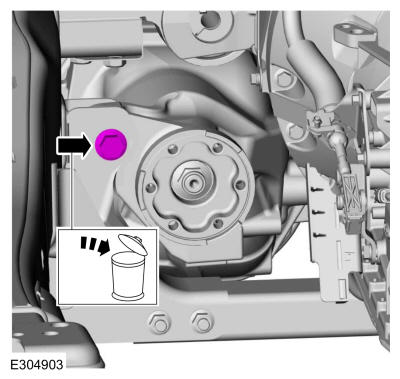

31. Remove and discard the axle shaft housing carrier bushing nut and the bolt.

    Courtesy of FORD MOTOR COMPANY

32. NOTE: After loosening the bolt, it may be necessary to reposition the axle assembly to prevent interference with the steering components when removing the bolt.

    Remove and discard the upper front axle carrier mounting bushing nut and the bolt.

    Courtesy of FORD MOTOR COMPANY

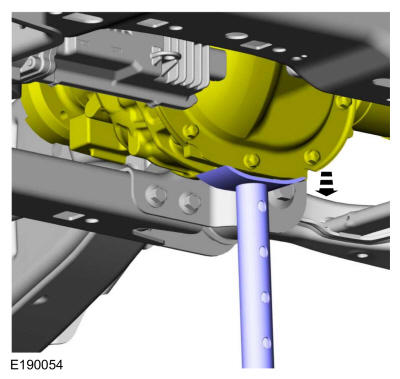

33. Using an adjustable stand, lower the front axle to allow clearance to the LH engine mount. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

    4x2/4x4

34. Remove the LH engine mount.

    Courtesy of FORD MOTOR COMPANY

35. 1. Inspect the engine mount-to-frame nut plate for thread damage.
    2. If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.

    Courtesy of FORD MOTOR COMPANY

    NOTE: If necessary, the following 4 steps are to remove the LH engine mount-to-cylinder block bracket.

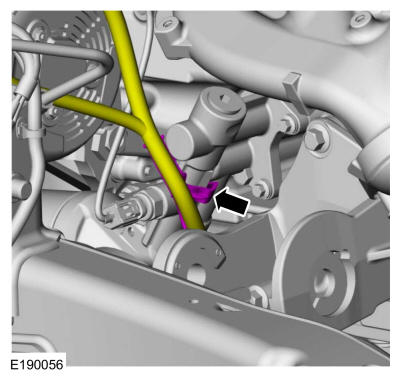

36. Detach the generator wiring harness retainer from the oil filter adapter.

    Courtesy of FORD MOTOR COMPANY

37. Detach the generator wiring harness from the engine front cover.

    Courtesy of FORD MOTOR COMPANY

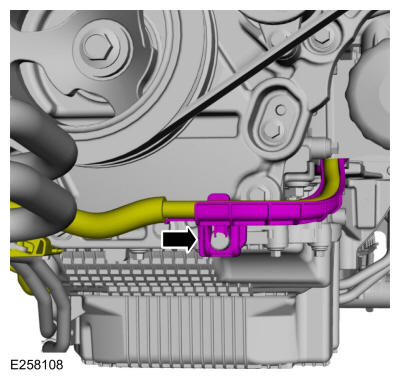

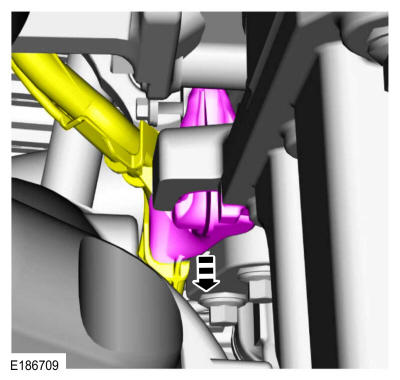

38. Detach the generator wiring harness retainer from the lower LH side of the engine block.

    Courtesy of FORD MOTOR COMPANY

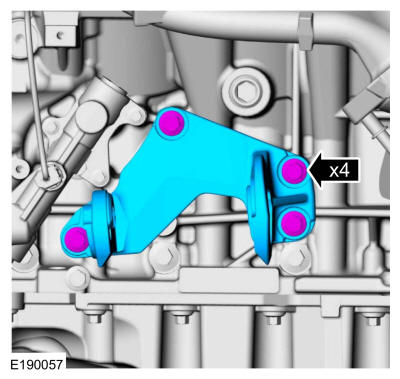

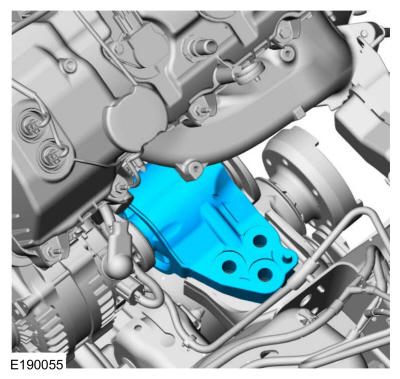

39. Remove the 4 bolts and the LH engine mount-to-cylinder block bracket.

Courtesy of FORD MOTOR COMPANY
