Engine Mount LH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

NOTE: If removed, the following 4 steps are to install the LH engine mount-to-cylinder block bracket.
NOTE: Clean the engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.
  1. Install the LH engine mount-to-cylinder block bracket and install the bolts.

    Torque: 57 lb.ft (77 Nm)

    GFD459487Courtesy of FORD MOTOR COMPANY
  2. Attach the generator wiring harness retainer to the lower LH side of the engine block.
    GFD459488Courtesy of FORD MOTOR COMPANY
  3. Attach the generator wiring harness to the engine front cover.
    GFD459485Courtesy of FORD MOTOR COMPANY
  4. Attach the generator wiring harness retainer to the oil filter adapter.
    GFD459484Courtesy of FORD MOTOR COMPANY
  5. NOTE: Replace the nut plate with part number W716699-S439.

    If removed, install a new engine mount-to-frame nut plate.

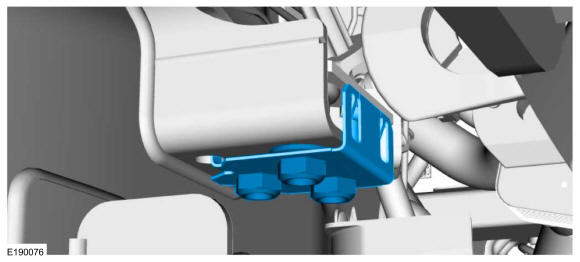

    GFD458888Courtesy of FORD MOTOR COMPANY
  6. NOTE: Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

    • Position the LH engine mount and hand start the new engine mount-to-frame bolts.

    • Do not torque at this time.

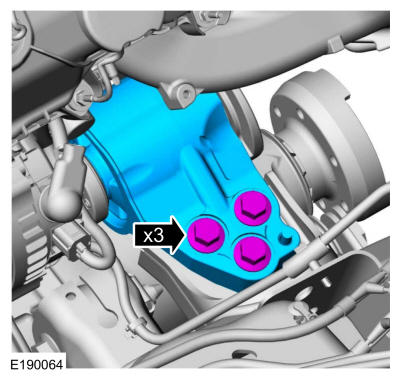

    GFD459489Courtesy of FORD MOTOR COMPANY

    4x4

  7. Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands
    GFD458896Courtesy of FORD MOTOR COMPANY
  8. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    GFD458951Courtesy of FORD MOTOR COMPANY
  9. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.
    GFD458898Courtesy of FORD MOTOR COMPANY
  10. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

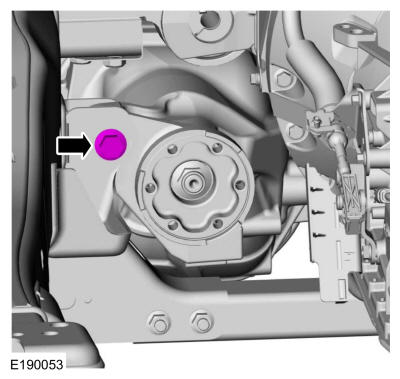

    GFD458899Courtesy of FORD MOTOR COMPANY
  11. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458953Courtesy of FORD MOTOR COMPANY
  12. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458901Courtesy of FORD MOTOR COMPANY
  13. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands
    GFD458875Courtesy of FORD MOTOR COMPANY
  14. Install the steering gear boot.
    GFD458874Courtesy of FORD MOTOR COMPANY
    1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Install a new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD458902Courtesy of FORD MOTOR COMPANY
  16. Remove the holding device from the steering wheel.
    GFD458607Courtesy of FORD MOTOR COMPANY

    4x2/4x4

  17. Tighten the LH engine mount-to-frame bolts.

    Torque: 129 lb.ft (175 Nm)

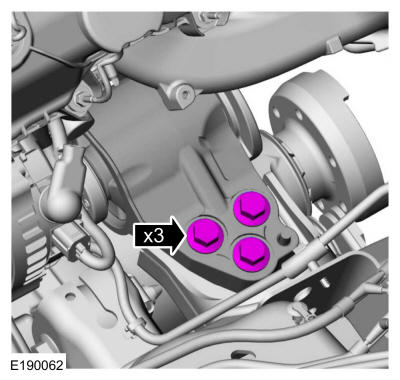

    GFD459490Courtesy of FORD MOTOR COMPANY
  18. Using the engine support bar, lower the engine to the installed position. Use Special Service Tool: 303-F070 Support Bar, Engine.
    GFD459491Courtesy of FORD MOTOR COMPANY
  19. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD458891Courtesy of FORD MOTOR COMPANY
  20. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    GFD458892Courtesy of FORD MOTOR COMPANY
  21. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

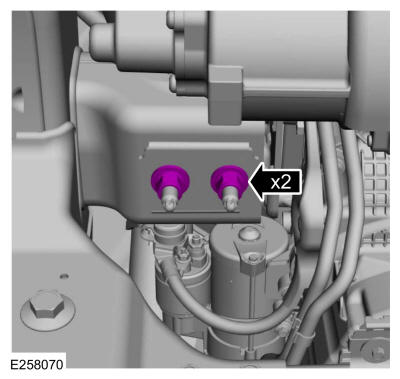

    GFD459492Courtesy of FORD MOTOR COMPANY
  22. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD458872Courtesy of FORD MOTOR COMPANY
  23. Install the new RH catalytic converter-to-exhaust manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD459406Courtesy of FORD MOTOR COMPANY
  24. Install the new LH catalytic converter-to-exhaust manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD459407Courtesy of FORD MOTOR COMPANY
    • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.

    • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 46 lb.ft (63 Nm)

    • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 46 lb.ft (63 Nm)

    GFD459408Courtesy of FORD MOTOR COMPANY

    4x4

  26. Install the front driveshaft. Refer to: Front Driveshaft .

    4x2/4x4

  27. If equipped, install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD459436Courtesy of FORD MOTOR COMPANY
  28. If equipped, install the underbody shield and bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD458870Courtesy of FORD MOTOR COMPANY
  29. If equipped, install the transmission housing cover and the bolts

    Torque: 71 lb.in (8 Nm)

    GFD458868Courtesy of FORD MOTOR COMPANY
  30. Remove Special Service Tool: 303-F070 Support Bar, Engine.
    GFD459479Courtesy of FORD MOTOR COMPANY
  31. Remove the special tool and the D-ring. Remove Special Service Tool: 303-1454 Engine Spreader Bar.
    GFD459478Courtesy of FORD MOTOR COMPANY
  32. NOTE: When installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Install the high-pressure fuel pump noise insulator.

    GFD459477Courtesy of FORD MOTOR COMPANY
  33. Connect the high-pressure fuel pump wiring harness electrical connector.
    GFD459476Courtesy of FORD MOTOR COMPANY
  34. Install the oil level indicator.
    GFD459475Courtesy of FORD MOTOR COMPANY
  35. Remove Special Service Tool: 303-1245 Engine Lift Eye.
    GFD459474Courtesy of FORD MOTOR COMPANY
  36. Install the LH engine lift eye.

    Torque: 18 lb.ft (24 Nm)

    GFD459473Courtesy of FORD MOTOR COMPANY
  37. Install the PCV tube.
    GFD459472Courtesy of FORD MOTOR COMPANY
  38. Install the upper intake manifold. Refer to: Upper Intake Manifold .
  39. NOTE: LH shown, RH similar.

    1. Position the hood shock and attach.
    2. Install the clip.

    GFD459493Courtesy of FORD MOTOR COMPANY
  40. Position the hood and install the nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD459470Courtesy of FORD MOTOR COMPANY
  41. Start and check the exhaust system for leaks.
