Cylinder Head LH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed. Refer to Variable Camshaft Timing (VCT) Unit .
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .
  4. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  5. If equipped, remove the bolts and the transmission housing cover.
    GFD458868Courtesy of FORD MOTOR COMPANY

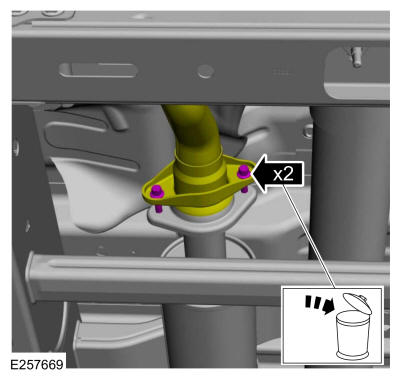

  6. NOTE: Make sure that the mating faces are clean and free of foreign material.

    • Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    • Discard the bolts.

    GFD459386Courtesy of FORD MOTOR COMPANY
  7. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the LH catalytic converter-to-exhaust manifold nuts.

    GFD459387Courtesy of FORD MOTOR COMPANY
  8. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the RH catalytic converter-to-exhaust manifold nuts.

    GFD459388Courtesy of FORD MOTOR COMPANY
  9. Remove the following items:

    1. Remove the LH fender splash shield. Refer to: Fender Splash Shield .
    2. Remove the LH camshafts. Refer to: Camshafts .

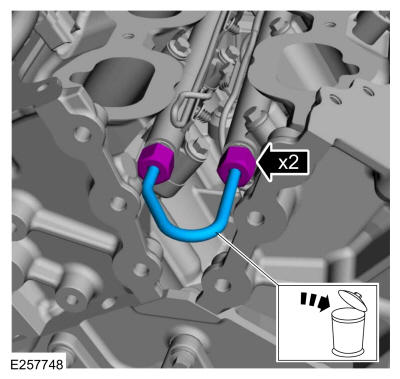

    • Loosen the fuel rail to fuel rail high-pressure fuel tube flare nuts and remove.

    • Discard the fuel rail to fuel rail high-pressure fuel tube.

    GFD459389Courtesy of FORD MOTOR COMPANY
  10. Detach the retainers, remove the nut and ground strap.
    GFD459390Courtesy of FORD MOTOR COMPANY
    • Detach and disconnect the direct injection wiring harness electrical connector.

    • Disconnect the CMP sensor electrical connectors and detach the wiring harness retainer.

    GFD459391Courtesy of FORD MOTOR COMPANY
  11. Remove the bolts and the CMP sensors.
    GFD459392Courtesy of FORD MOTOR COMPANY
  12. NOTE: Do not use power tools to remove the bolt or damage to the upper LH timing chain guide may occur.

    Remove the bolt and the upper LH timing chain guide.

    GFD459393Courtesy of FORD MOTOR COMPANY

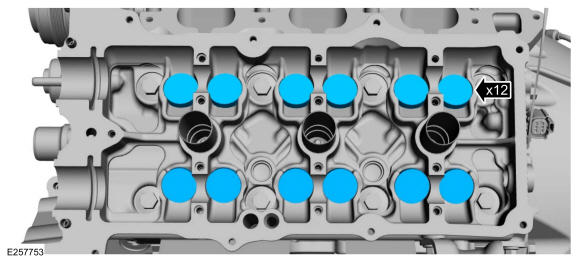

  13. NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

    Remove the valve tappets.

    GFD459394Courtesy of FORD MOTOR COMPANY
  14. Inspect and install new components as necessary.
    GFD459395Courtesy of FORD MOTOR COMPANY

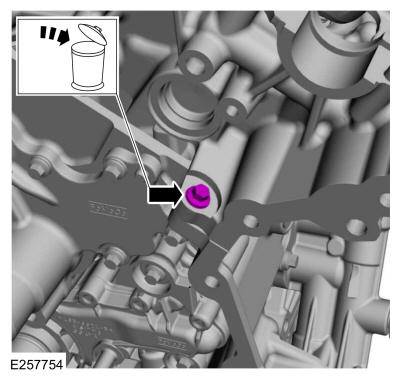

  15. Remove and discard the M6 bolt.
    GFD459396Courtesy of FORD MOTOR COMPANY

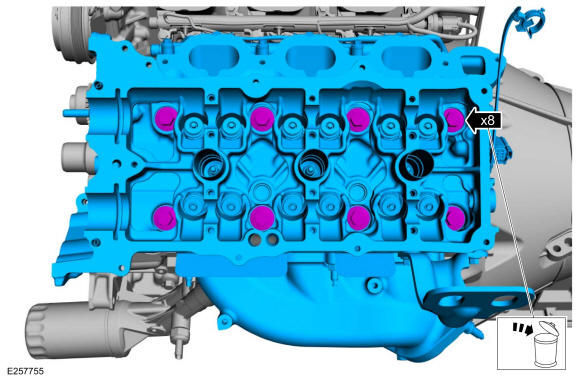

  16. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

    • Remove and discard the bolts.

    • Remove the cylinder head.

    GFD459397Courtesy of FORD MOTOR COMPANY

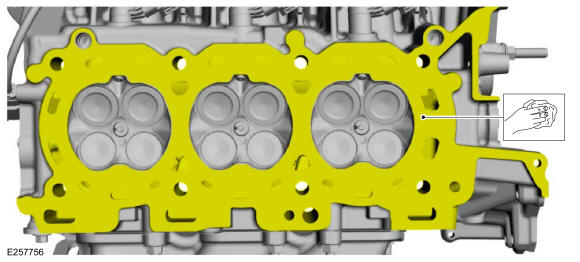

  17. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    • Make sure that the mating faces are clean and free of foreign material.

    • Support the cylinder head on a bench with the head gasket side up and check the cylinder head distortion. Refer to: Cylinder Head Distortion .

    GFD459398Courtesy of FORD MOTOR COMPANY

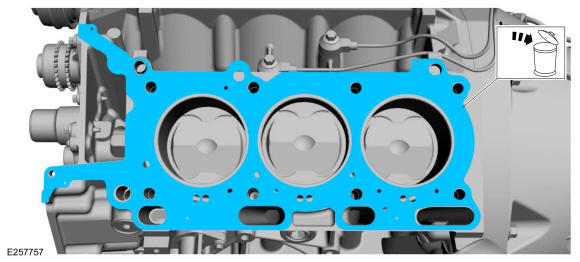

  18. Remove and discard the cylinder head gasket.
    GFD459399Courtesy of FORD MOTOR COMPANY

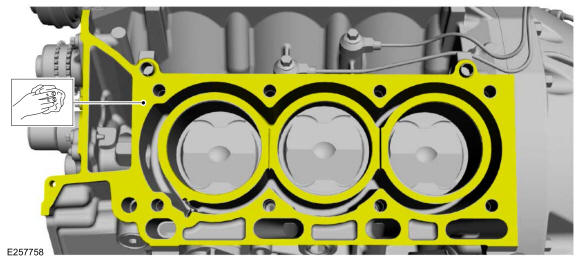

  19. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    • Make sure that the mating faces are clean and free of foreign material.

GFD459400Courtesy of FORD MOTOR COMPANY
