Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

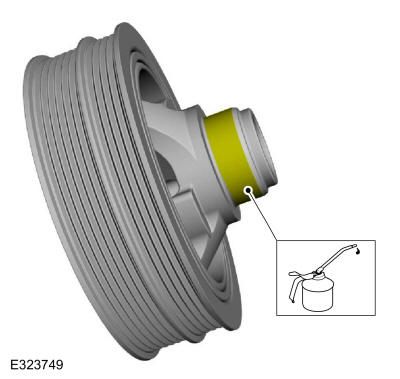

Lubricate the crankshaft pulley with clean engine oil.

Courtesy of FORD MOTOR COMPANY

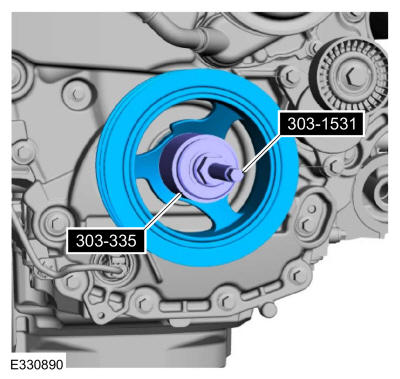

Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-1531 Installer, Front Crank Seal and Damper., 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal.

Courtesy of FORD MOTOR COMPANY

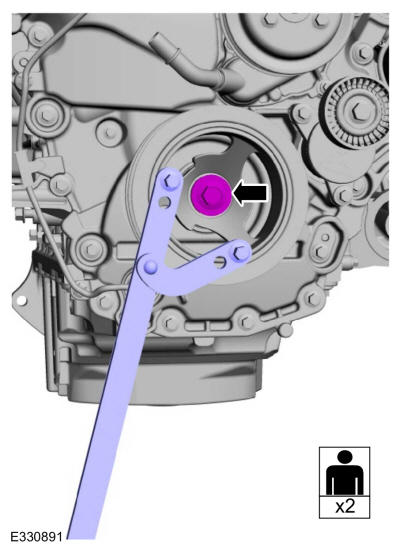

NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

Using a universal pulley holder, install and tighten a new crankshaft pulley bolt and the washer and tighten in 3 stages.

Torque: Stage 1: 37 lb.ft (50 Nm) | Stage 2: 90° | Stage 3: 60°

Courtesy of FORD MOTOR COMPANY
Install the A/C compressor belt. Refer to the appropriate Accessory Drive article.
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
