Crankshaft Front Seal: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the crankshaft front seal bore with clean engine oil.

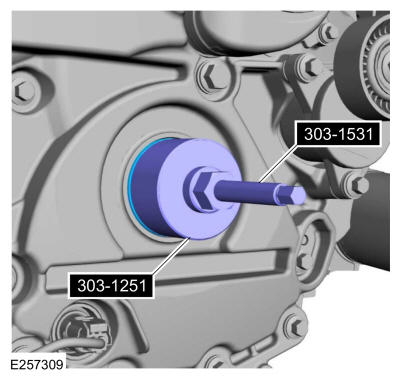

- Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-1531 Installer, Front Crank Seal and Damper., 303-1251 Installer, Front Seal.
- Remove the crankshaft pulley. Refer to: Crankshaft Pulley .
