Exploded View Of Engine Upper -- LH Cylinder Head
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

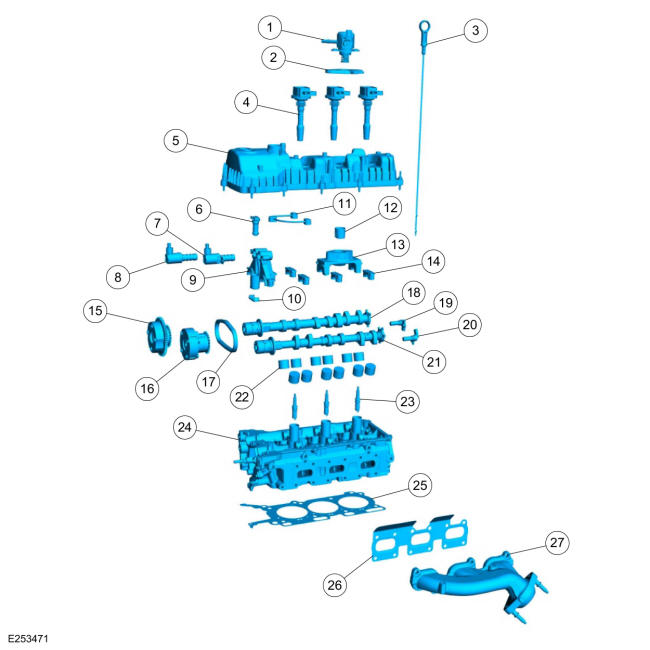

| Item | Part Number | Description |
|---|---|---|
| 1 | 9D376 | High pressure fuel pump |
| 2 | 9178 | High pressure fuel pump mounting plate |
| 3 | 6750 | Oil level indicator |
| 4 | 12A375 | LH ignition coil-on-plugs (3 required) |
| 5 | 6K273 | LH valve cover |
| 6 | 6C270 | LH secondary timing chain tensioner |
| 7 | 6B297 | Intake camshaft variable camshaft timing (VCT) oil control solenoid |
| 8 | 6B297 | Exhaust camshaft VCT oil control solenoid |
| 9 | 6B280 | Camshaft mega cap |
| 10 | 6K297 | LH secondary tensioner shoe |
| 11 | 6K602 | Valve train oil feed tube |
| 12 | 9C587 | High pressure fuel pump tappet |
| 13 | 6B285 | Camshaft bearing cap |
| 14 | 6A258 | LH camshaft cap (4 required) |
| 15 | 6C525 | Exhaust camshaft variable camshaft timing (VCT) unit |
| 16 | 6C524 | Intake camshaft VCT unit |
| 17 | 6C256 | LH secondary timing chain |
| 18 | 6250 | LH intake camshaft |
| 19 | 6B288 | LH exhaust camshaft position (CMP) sensor |
| 20 | 6B288 | LH intake CMP sensor |
| 21 | 6250 | LH exhaust camshaft |
| 22 | 6500 | Valve tappet (12 required) |
| 23 | 12405 | Spark plug (3 required) |
| 24 | 6050 | LH cylinder head |
| 25 | 6083 | LH cylinder head gasket |
| 26 | 9448 | LH exhaust manifold gasket |
| 27 | 9431 | LH exhaust manifold |
