Section 392 (Automatic Transmission - 6-Speed Automatic Transmission - 6R80)
>>
Description And Operation
>>
Transmission Description - System Operation and Component Description
>>

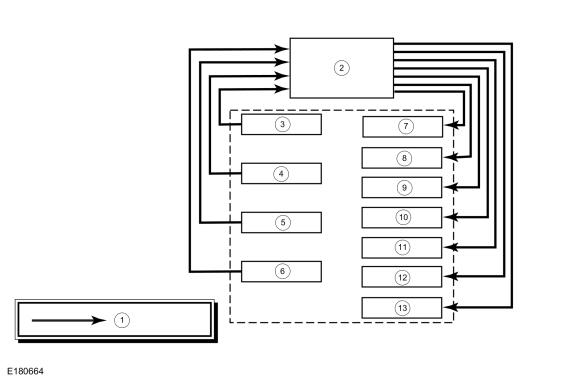

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Hardwire Connection
2
PCM
3
TFT
4
TR
5
TSS
6
OSS
7
LPC
8
SSA
9
SSB
10
SSC
11
SSD
12
SSE
13
TCC
