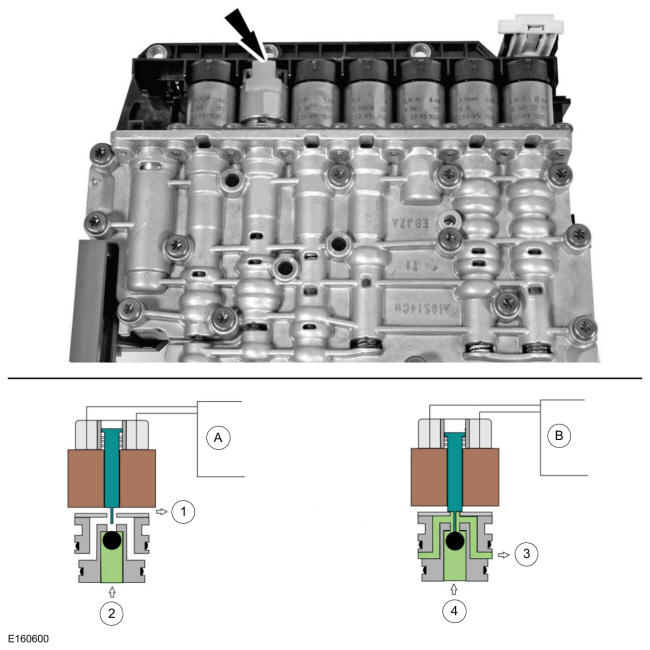

Shift Solenoid E (SSE) ON/OFF Solenoid
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| A |
Off |
| B |
On |
| 1 |
Exhaust Port Connects To Outlet Port (SS1 Circuit) |
| 2 |
SREG Circuit Fluid (Supply) |
| 3 |
Outlet Port (SS1 Circuit) |
| 4 |
SREG Circuit Fluid (Supply) |
