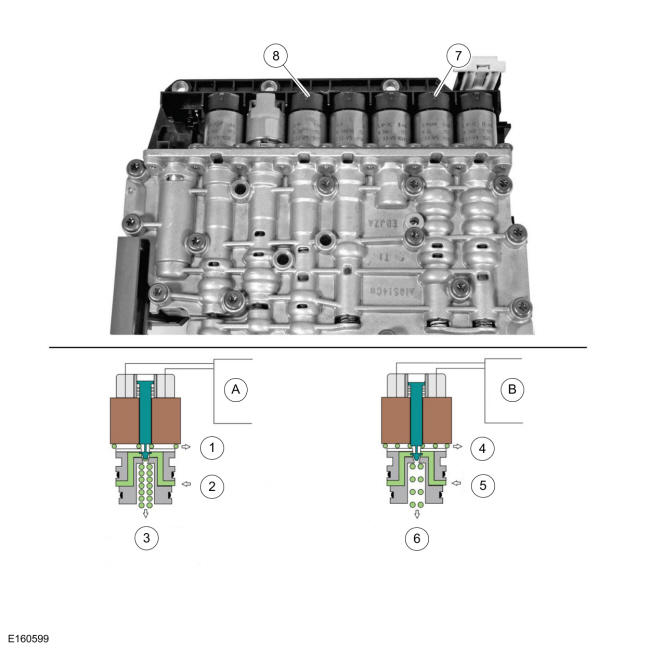

Shift Solenoid B (SSB) and Shift Solenoid D (SSD) Inverse Proportional Variable VFS
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| A |
Low Current |
| B |
High Current |
| 1 |
Low Exhaust |
| 2 |
SREG Circuit Fluid (Supply) |
| 3 |
High Pressure To Clutch Regulator And Latch Valves |
| 4 |
High Exhaust |
| 5 |
SREG Circuit Fluid (Supply) |
| 6 |
Low Pressure To Clutch Regulator And Latch Valves |
| 7 |
SSB Variable Force Solenoid (VFS) |
| 8 |
SSD VFS |
