4th Gear: Notes
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

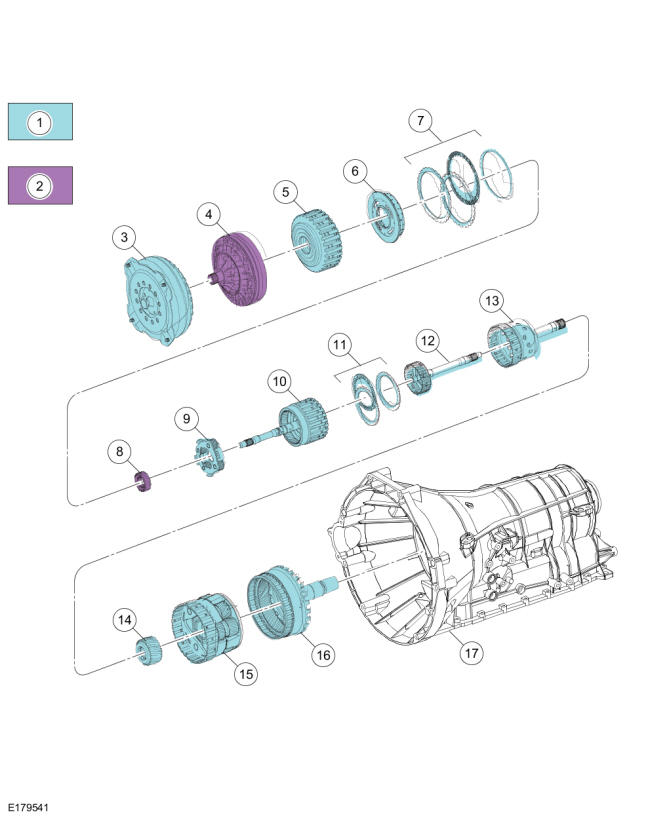

| Item | Description |
|---|---|
| 1 | Driven Components |
| 2 | Held Components |
| 3 | Torque Converter |
| 4 | Pump Assembly |
| 5 | Forward Clutch Cylinder and Hub Assembly |
| 6 | Forward Clutch Balance Piston |
| 7 | Forward Clutch Assembly (A) |
| 8 | Front Planetary Sun Gear (No. 1) |
| 9 | Front Planetary Carrier Assembly |
| 10 | Front Planetary Ring Gear Assembly (Input Shaft) |
| 11 | Overdrive Clutch (E) Assembly |
| 12 | Overdrive Clutch Shaft |
| 13 | No. 3 Sun Gear Hub and Shaft Assembly |
| 14 | Rear Planetary Sun Gear (No. 3) |
| 15 | Rear Planetary Carrier |
| 16 | Rear Planetary Ring Gear and Output Shaft Assembly |
| 17 | Transmission Case |
