3rd Gear Power Flow

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

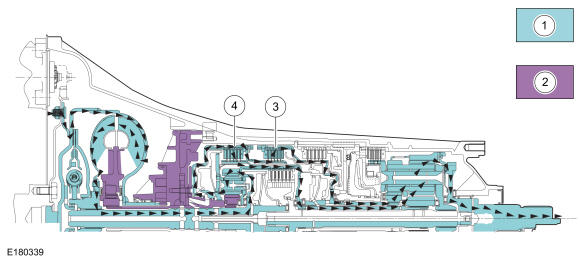

GFD463414Courtesy of FORD MOTOR COMPANY
Item Description
1 Driven Components
2 Held Components
3 Direct Clutch (B)
4 Forward Clutch (A)
