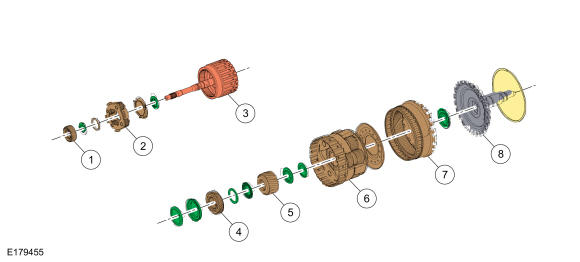

Planetary Gearset Exploded View
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front planetary No. 1 sun gear |
| 2 |
Front planetary carrier |
| 3 |
Front planetary ring gear (part of input shaft assembly) |
| 4 |
Rear planetary No. 2 sun gear |
| 5 |
Rear planetary No. 3 sun gear |
| 6 |
Rear planetary carrier |
| 7 |
Rear planetary ring gear |
| 8 |
Output shaft |
