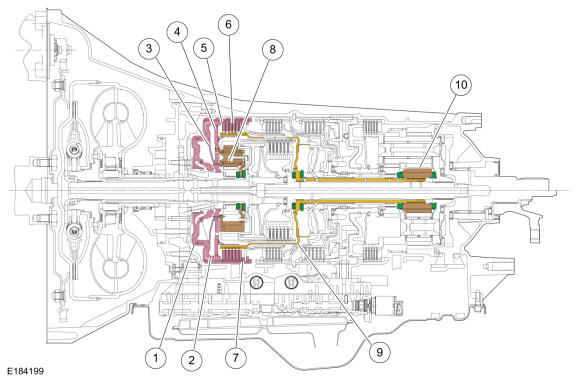

Forward Clutch Cutaway View
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Forward clutch (A) cylinder |
| 2 | Forward clutch piston |
| 3 | Forward clutch piston return spring |
| 4 | Forward clutch balance piston |
| 5 | Forward clutch wave spring |
| 6 | Forward clutch assembly (quantity model dependent) |
| 7 | Forward clutch snap ring (selective) |
| 8 | Front planetary carrier assembly |
| 9 | Rear planetary No. 3 sun gear hub and shaft assembly |
| 10 | Rear planetary No. 3 sun gear |
