Transmission Fluid Cooler - 3.3L Duratec-V6: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the active grille shutter. Refer to: Active Grille Shutter .
-
NOTE: Be prepared to collect escaping fluid.

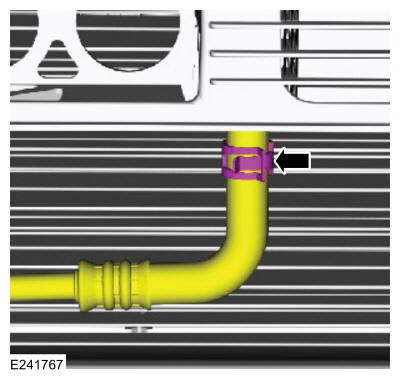

Release the clamp and disconnect the transmission fluid cooler supply tube.
- Release the clamp and disconnect the transmission fluid cooler return tube.
- Unclip and remove the transmission fluid cooler.
