Transmission Fluid Cooler - 2.7L EcoBoost (238kW/324PS)/3.5L EcoBoost (272kW/370PS)/5.0L 32V Ti-VCT: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: If equipped.

If equipped, remove the bolts, the retainer and the shield.

Courtesy of FORD MOTOR COMPANY

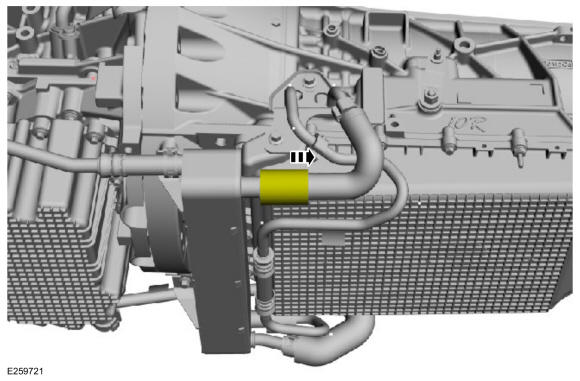

Position the transmission fluid cooler inlet tube heat shield aside.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid cooler inlet tube secondary latch.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

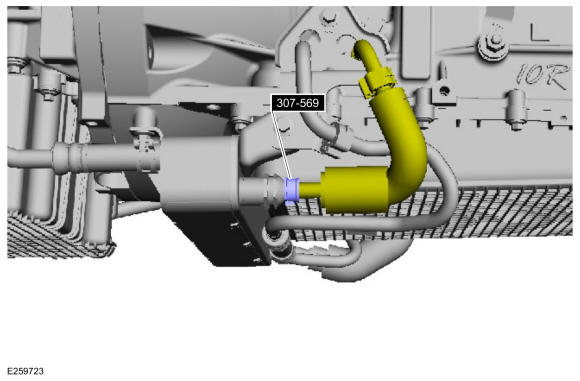

Using the special tool, disconnect the transmission fluid cooler inlet tube from the transmission fluid cooler. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY

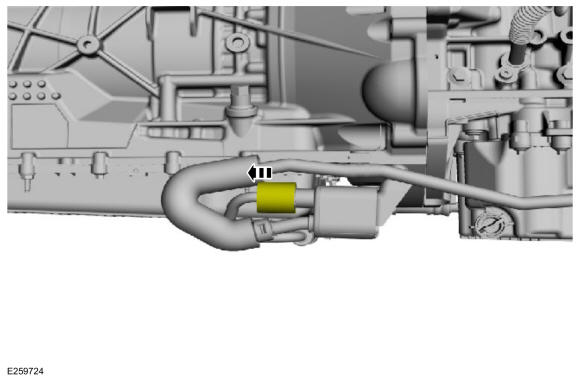

Position the transmission fluid cooler outlet tube heat shield aside.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid cooler outlet tube secondary latch.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

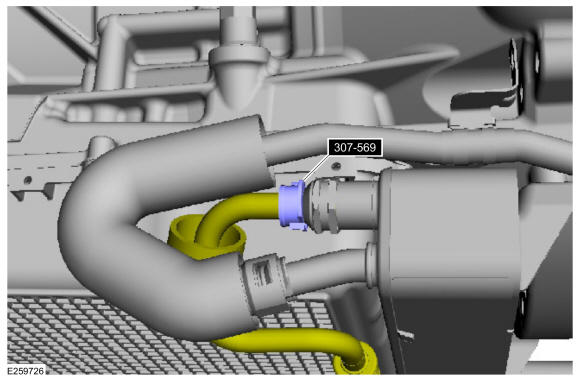

Using the special tool, disconnect the transmission fluid cooler outlet tube from the transmission fluid cooler. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY
Clamp the transmission fluid cooler coolant hoses. Use the General Equipment: Hose Clamp(s)

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Release the quick connect coupling and disconnect the coolant hose from the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluids.

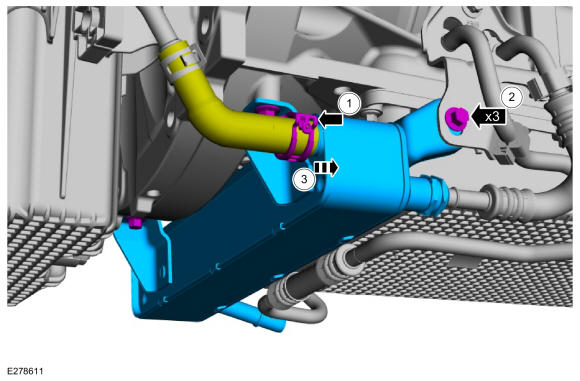

Remove the transmission fluid cooler.
1. Release the coolant hose clamp.
2. Remove the transmission fluid cooler bolts.
3. Slide the transmission fluid cooler off the coolant hose and remove.

Courtesy of FORD MOTOR COMPANY
