Transmission Cooling - Component Location: Raptor
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

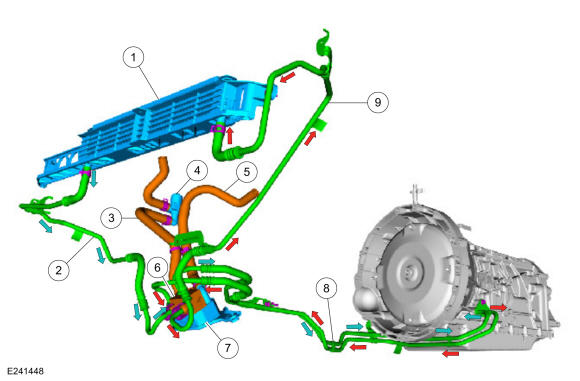

| Item | Description |
|---|---|
| 1 | Transmission fluid cooler |
| 2 | Transmission fluid cooler outlet hose |
| 3 | Transmission fluid warmer coolant outlet hose |
| 4 | Transmission fluid warmer coolant control valve |
| 5 | Transmission fluid warmer coolant inlet hose |
| 6 | Cooler bypass valve |
| 7 | Transmission fluid warmer |
| 8 | Transmission fluid cooler tube assembly |
| 9 | Transmission fluid cooler inlet hose |
