Front Tow Bracket: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Restore the vehicle to manufacturer's dimensions if required.
  2. Remove the front bumper. Refer to BUMPERS

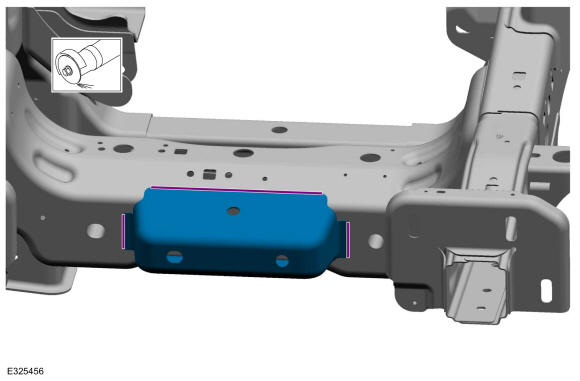

  3. Remove the front tow bracket. Use the General Equipment: Spherical Cutter
    GFD468233Courtesy of FORD MOTOR COMPANY

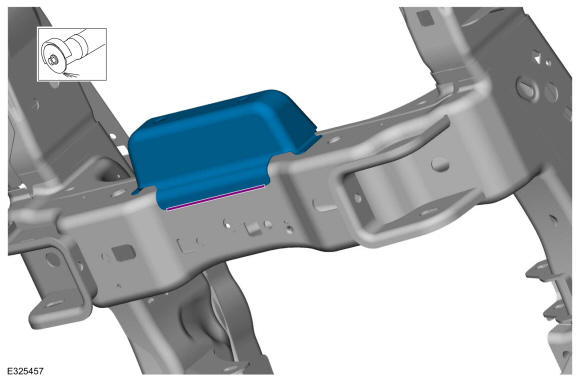

  4. Remove the front tow bracket. Use the General Equipment: Spherical Cutter
GFD468234Courtesy of FORD MOTOR COMPANY
