Front Tow Bracket: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Refer to: Joining Techniques .

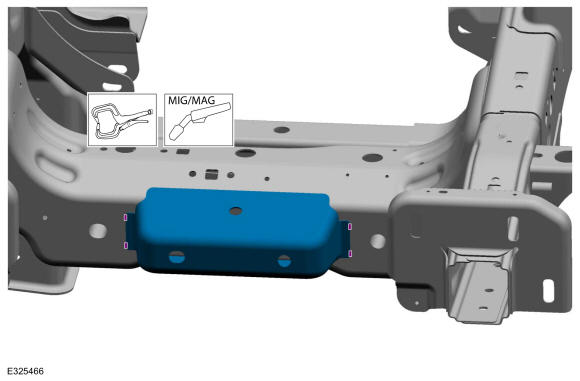

- Loosely clamp the replacement bracket in a preliminary position. Perform measurements to verify proper placement of the new bracket, then clamp firmly into position. With all measurements verified and the new bracket in proper position, tack-weld the new bracket in place. Use the General Equipment: Locking PliersUse the General Equipment: MIG/MAG Welding Equipment

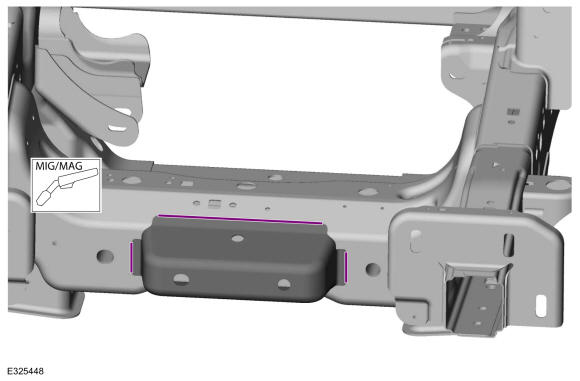

- Re-check measurements, then solid weld the bracket to the frame on the inside and outside. Use the General Equipment: MIG/MAG Welding Equipment

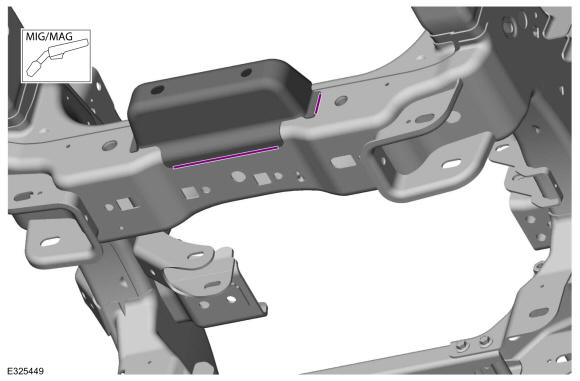

- Re-check measurements, then solid weld the bracket to the frame on the inside and outside. Use the General Equipment: MIG/MAG Welding Equipment
- Metal finish the repair area using typical metal finishing techniques.
- Restore corrosion protection. Refer to: Corrosion Prevention .
- Install the front bumper. Refer to BUMPERS
