Drilling Precautions
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Repair

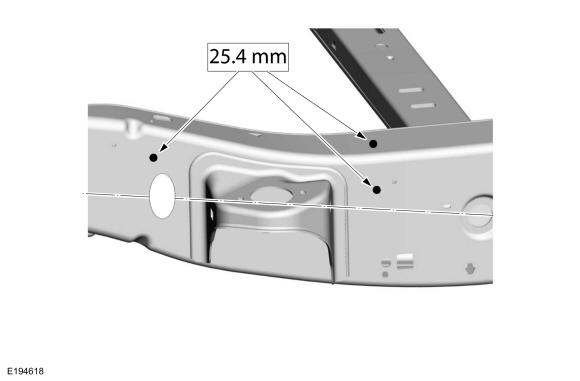

- If a hole must be drilled in the frame the following requirements must be followed:
- The hole is at least the specified distance from the edge of the nearest hole.
- The edge of the drilled hole is at least the specified distance from the edge of the flange.
- The hole is at least the specified distance above the frame centerline.
- The drilled hole is at least the specified distance from any other existing bracket or component of the frame.
