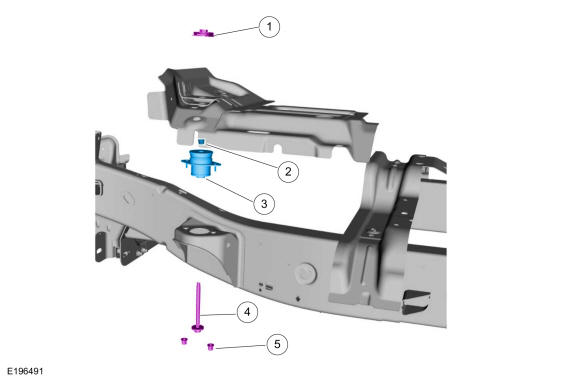

Body Mount -- No. 1 (LH/RH All Cabs)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
Torque |
| 1 |
Body retainer cage nut |
-- |
| 2 |
Cap |
-- |
| 3 |
Body mount |
-- |
| 4 |
Body mount bolt |
115 Nm (85 lb-ft) |
| 5 |
Body mount nut (2 required) |
62 Nm (46 lb-ft) |
