Ignition Coil-On-Plug: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inspect and replace any ignition coil-on-plugs that have rubber boots with cracks, rips or tears.

Courtesy of FORD MOTOR COMPANY

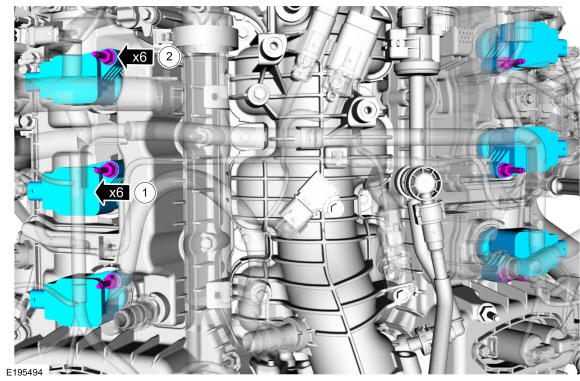

1. Install the ignition coil-on-plugs.
2. Install and tighten the ignition coil-on-plug studbolts.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

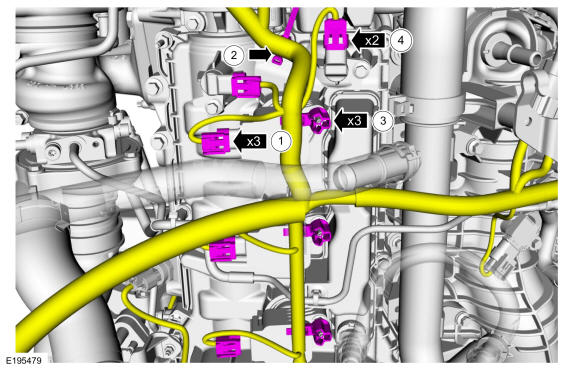

1. Push the wire harness side connector onto the ignition coil-on-plug connector until locked. A clicking sound will be heard when fully seated. Slide the red locking tab (CPA) toward the ignition coil-on-plug until a second clicking sound is heard.
2. Attach the RH ignition coil-on-plug harness retainer to the valve cover studbolt.
3. Attach the RH ignition coil-on-plug harness retainers to the ignition coil-on-plug studbolts.
4. Connect the RH CMP sensor electrical connectors.
Courtesy of FORD MOTOR COMPANY

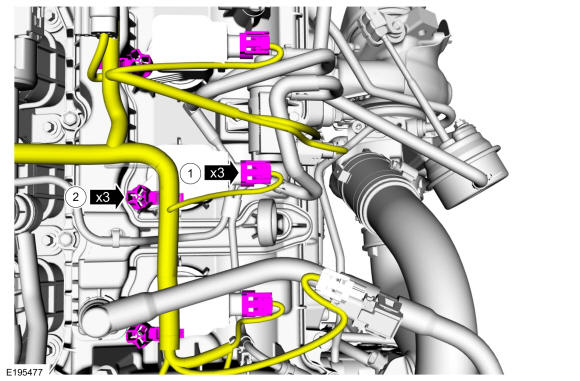

1. Push the wire harness side connector onto the ignition coil-on-plug connector until locked. A clicking sound will be heard when fully seated. Slide the red locking tab (CPA) toward the ignition coil-on-plug until a second clicking sound is heard.
2. Attach the LH ignition coil-on-plug harness retainers to the ignition coil-on-plug studbolts.
Courtesy of FORD MOTOR COMPANY
Install the engine appearance cover and then install and tighten the engine appearance cover retainers.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
