Passenger Side Register: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

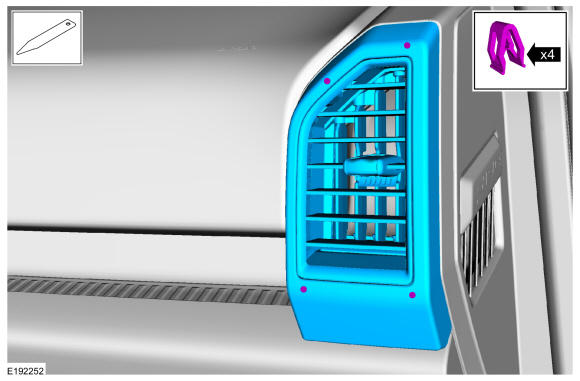

- Release the clips and remove the RH instrument panel finish panel Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

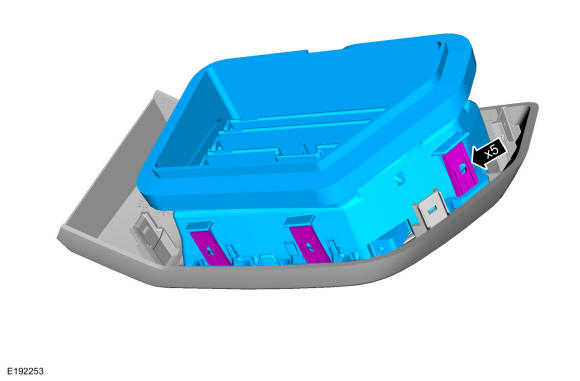

- Release the clips and remove the passenger side register assembly.
 Courtesy of FORD MOTOR COMPANY
|
