Removal And Installation: Condenser: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
- Recover the refrigerant. Refer to the appropriate Recovery procedure in the appropriate Climate Control System article.

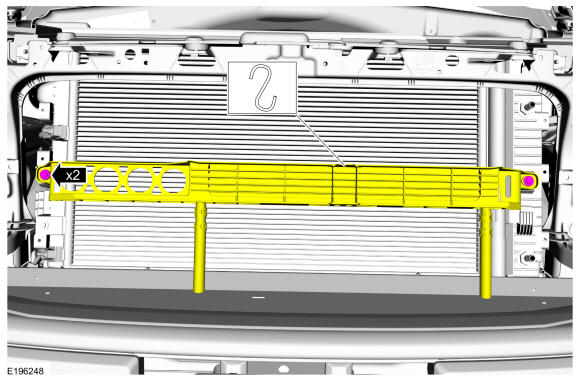

- Remove the radiator grille. Refer to: Radiator Grille .
- Remove the air cleaner. Refer to: AIR CLEANER . Refer to: AIR CLEANER . Refer to: Air Cleaner .

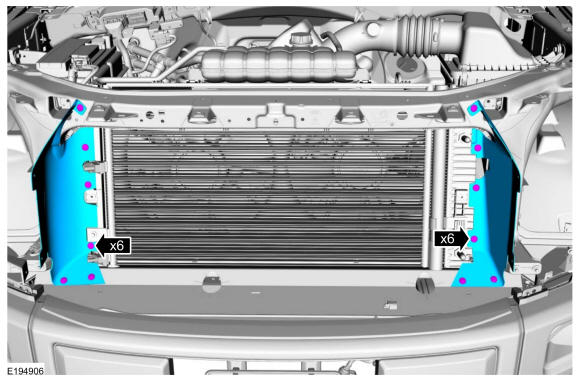

- Remove RH and LH radiator side air deflector pin-type retainers and the radiator side air deflectors.
-
NOTE: 5.0L transmission fluid auxiliary cooler shown, others similar.

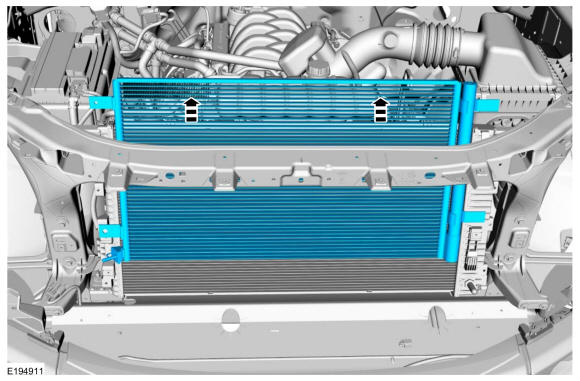

If equipped. Remove the retainers and position the transmission fluid auxiliary cooler aside.
Torque: 62 lb.in (7 Nm)
-
NOTE: Make sure that all openings are sealed.
- Remove the condenser inlet and outlet nuts and disconnect the fittings.
Torque: 1: 71 lb.in (8 Nm) 2: 133 lb.in (15 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.

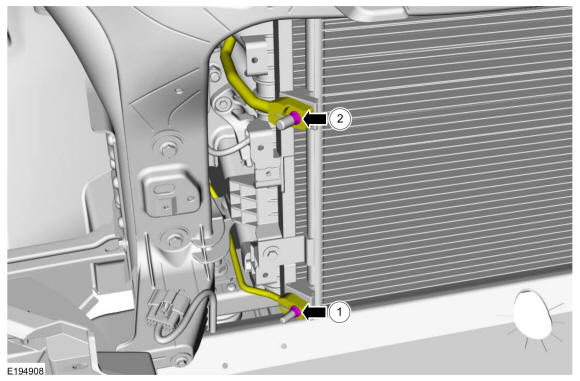

- Remove the condenser inlet and outlet nuts and disconnect the fittings.

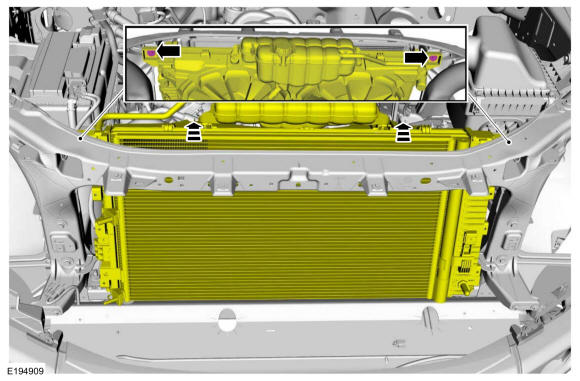

- Remove the radiator retainers and tilt the cooling module backward.
Torque: 133 lb.in (15 Nm)

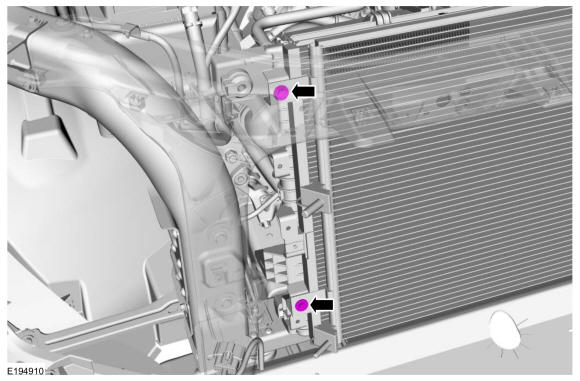

- Remove the condenser retainers.
Torque: 62 lb.in (7 Nm)

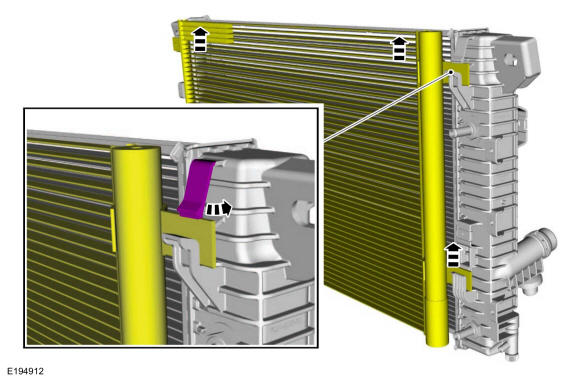

- Release the tab and position the condenser upward.
- Remove the condenser.
