Center Registers: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- Remove the HVAC control module. Refer to: Heating, Ventilation and Air Conditioning (HVAC) Control Module .
Vehicles equipped with floor console

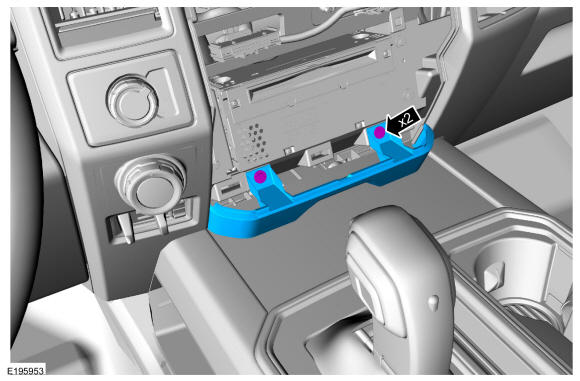

- Remove the screws and the center instrument panel lower finish panel.
Vehicles without floor Console

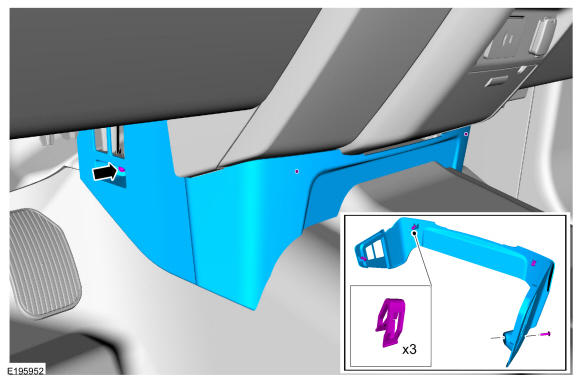

- Remove the screw, detach the clips and remove the center instrument panel lower finish panel.
Vehicles equipped with floor console

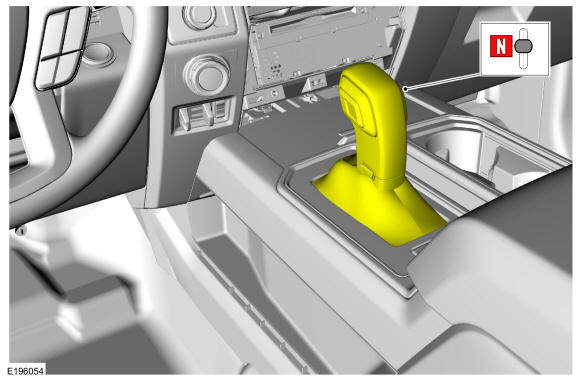

- Place the transmission selector lever in the NEUTRAL position.

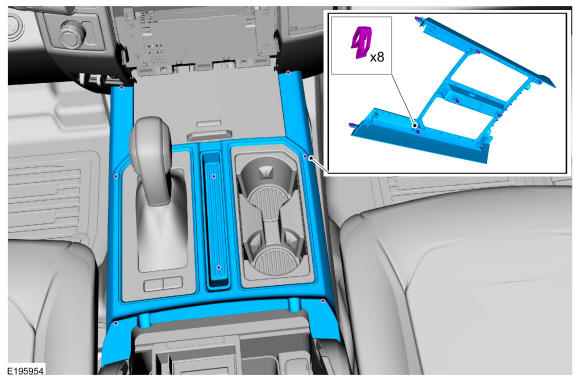

- Detach the clips and remove the floor console upper finish panel.
All vehicles
-
NOTE: Vehicle with floor console shown, without floor console similar.

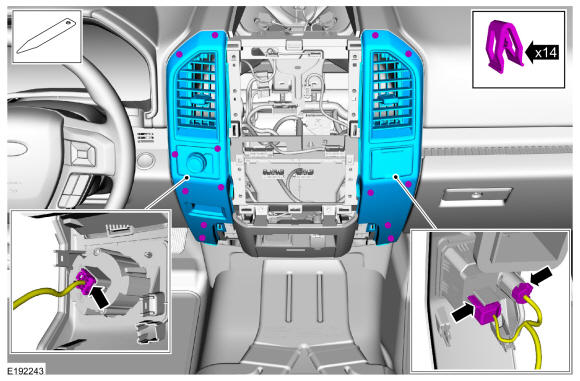

Release the clips, remove the instrument panel center finish panels and disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
