Wastegate Control Valve Solenoid: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

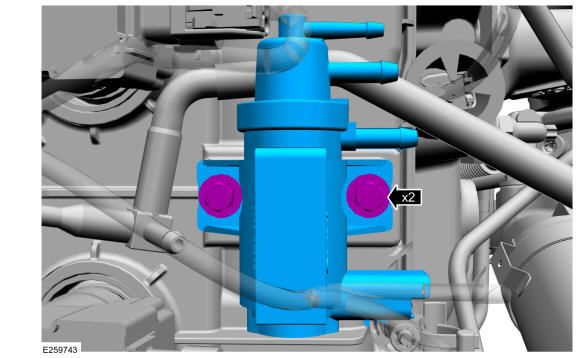

- Install the wastegate control valve solenoid, then install and tighten the wastegate control valve solenoid retainers.
Torque: 62 lb.in (7 Nm)

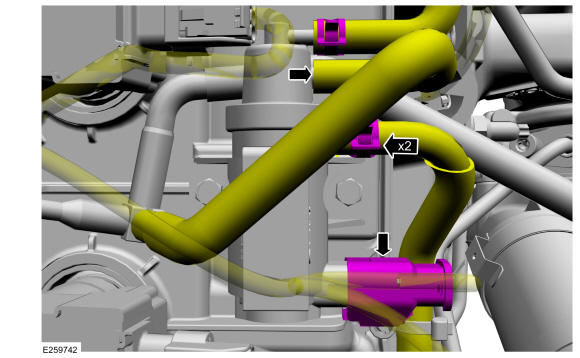

- Connect the wastegate control valve solenoid hoses and the wastegate control valve solenoid electrical connector. Use the General Equipment: Hose Clamp Remover/Installer
- Install the engine appearance cover, then install and tighten the engine appearance cover retainers.
Torque: 42 lb.in (4.8 Nm)
