Turbocharger LH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

If the turbocharger coolant supply tube was removed from the turbocharger, then install a NEW turbocharger end coolant supply tube O-ring seal. Lubricate the NEW O-ring seal with clean engine coolant. Refer to Specifications

Courtesy of FORD MOTOR COMPANY
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

NOTE: Install the turbocharger, then loosely install the turbocharger retainers. Install the turbocharger coolant supply tube to the engine block while installing the turbocharger.

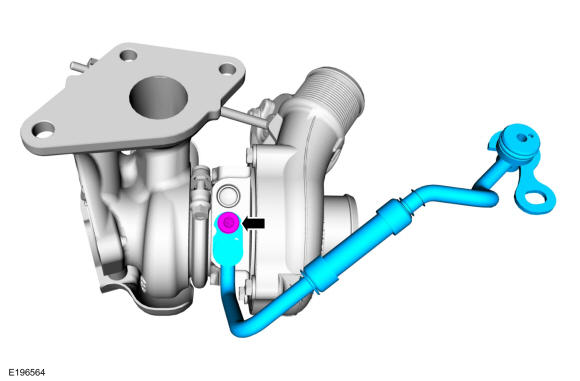

If removed, install the turbocharger coolant supply tube to the turbocharger, then install and tighten the turbocharger coolant supply tube bolt.

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

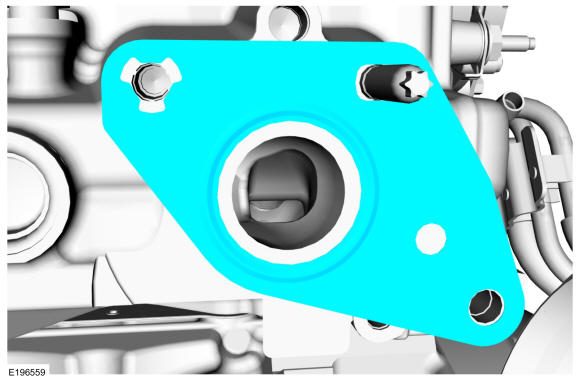

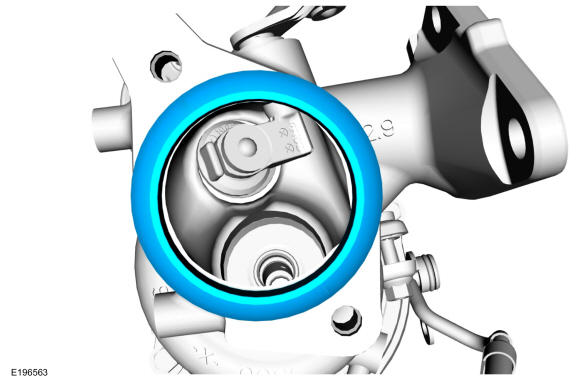

Install the NEW the turbocharger exhaust flange gasket.

Courtesy of FORD MOTOR COMPANY

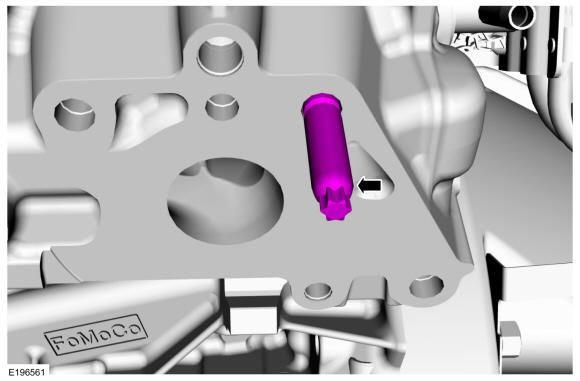

If removed, install and tighten the turbocharger mounting stud.
Torque: 102 lb.in (11.5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the NEW turbocharger gasket.

Courtesy of FORD MOTOR COMPANY
Install a NEW turbocharger coolant supply tube O-ring seal. Lubricate the NEW O-ring seal with clean engine coolant. Refer to: Specifications

Courtesy of FORD MOTOR COMPANY
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

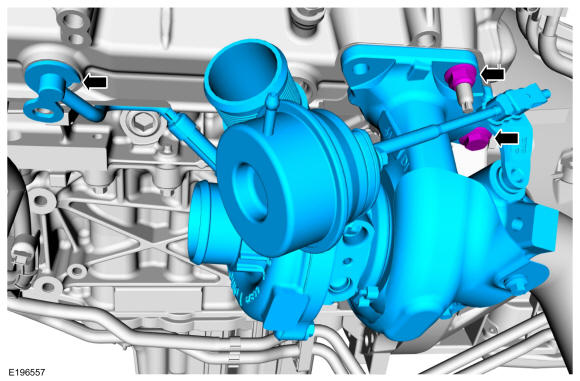

NOTE: Install the turbocharger, then loosely install the turbocharger retainers. Install the turbocharger coolant supply tube to the engine block while installing the turbocharger.

Loosely install the turbocharger retainers. Install the turbocharger coolant supply tube to the engine block while installing the turbocharger.

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY

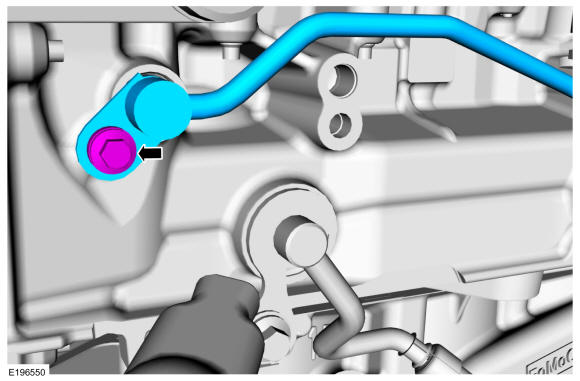

Install and tighten the turbocharger coolant supply tube bolt.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Install the NEW turbocharger oil return tube-to-engine block gasket.

Courtesy of FORD MOTOR COMPANY
Install a NEW turbocharger oil return tube O-ring seal, then lubricate with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

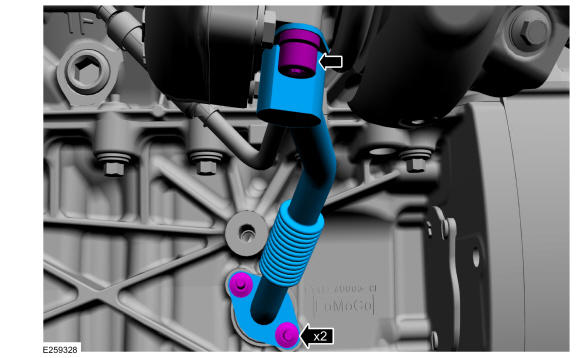

Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the NEW turbocharger oil supply tube O-ring seals and the NEW turbocharger oil supply tube oil filter. Lubricate the NEW turbocharger oil supply tube O-ring seals with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

Install the turbocharger oil supply tube, then loosely install the oil supply tube bolt.

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

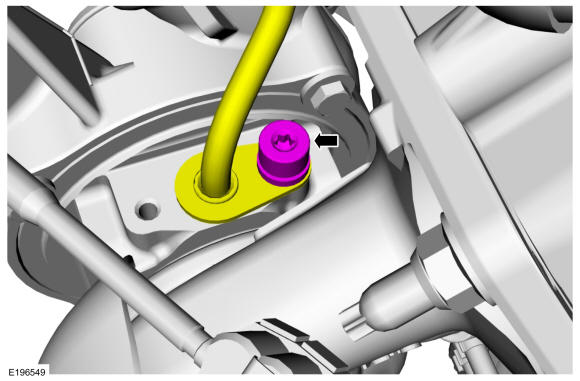

Connect the turbocharger oil supply tube to the turbocharger, then install and tighten the turbocharger oil supply tube bolt.

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

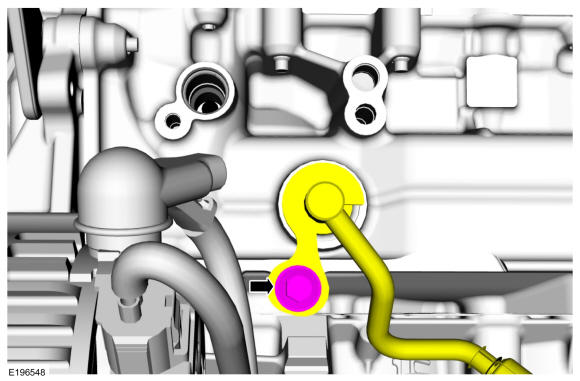

Tighten the turbocharger oil supply tube bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install and tighten the turbocharger mounting stud.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

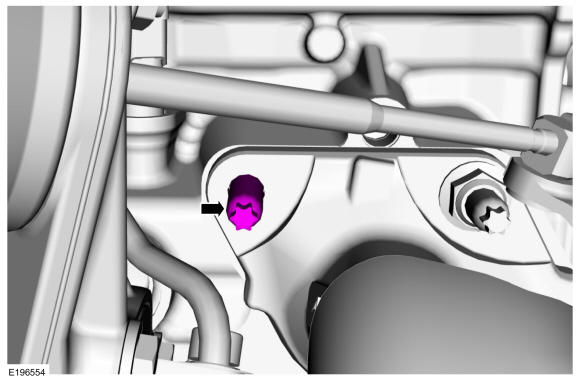

Loosely install the upper left turbocharger nut.

Courtesy of FORD MOTOR COMPANY

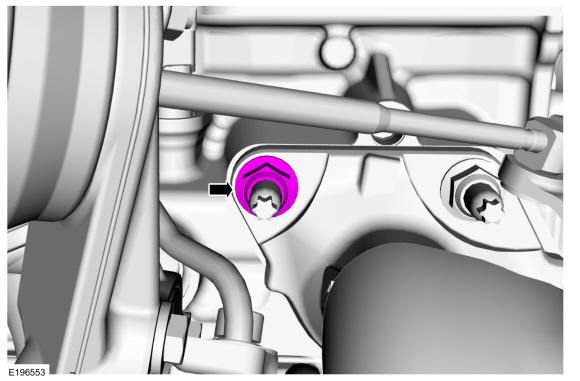

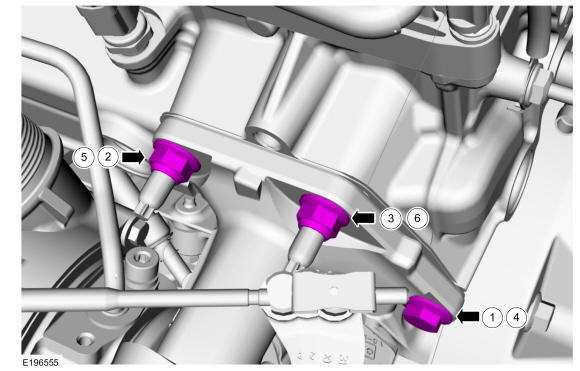

Tighten the turbocharger retainers in the following sequence.
1. Tighten the bolt.
  Torque: 44 lb.ft (60 Nm)
2. Tighten the nut.
  Torque: 44 lb.ft (60 Nm)
3. Tighten the nut.
  Torque: 27 lb.ft (37 Nm)
4. Re-tighten the bolt.
  Torque: 44 lb.ft (60 Nm)
5. Re-tighten the nut.
  Torque: 44 lb.ft (60 Nm)
6. Re-tighten the nut.
  Torque: 27 lb.ft (37 Nm)
Courtesy of FORD MOTOR COMPANY

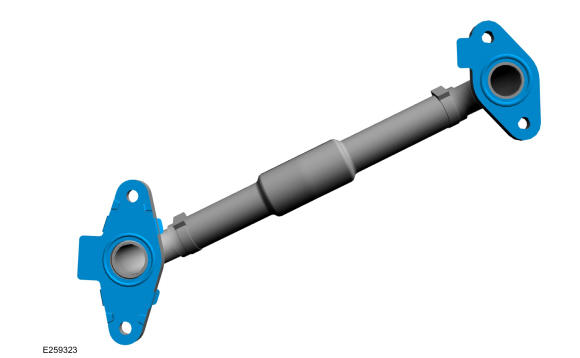

Install the NEW EGR tube gaskets.

Courtesy of FORD MOTOR COMPANY

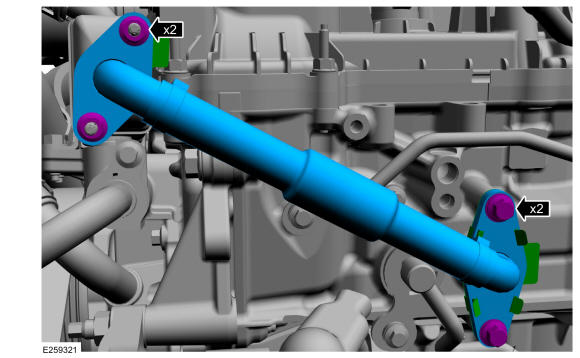

Install the EGR tube, then install and tighten the EGR tube retainers.
Torque: Nuts : 89 lb.in (10 Nm) Bolts : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

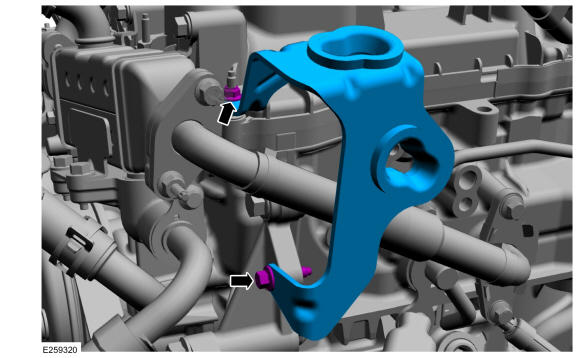

Install the air tube bracket, then install and the air tube bracket retainers.
Torque: Nut : 53 lb.in (6 Nm) Bolt : 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

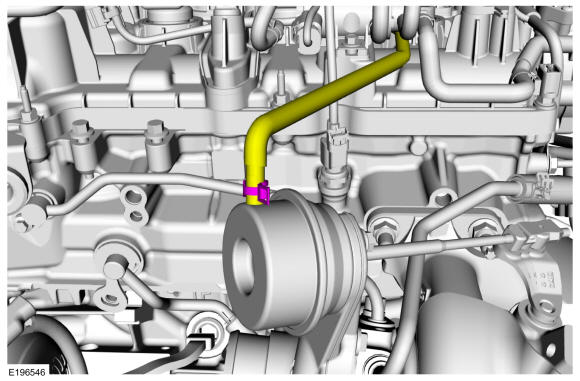

Connect the turbocharger wastegate control hose and clamp.

Courtesy of FORD MOTOR COMPANY
Install a NEW turbocharger coolant return tube O-ring seal. Lubricate the NEW O-ring seal with clean engine coolant. Refer to Specifications

Courtesy of FORD MOTOR COMPANY
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

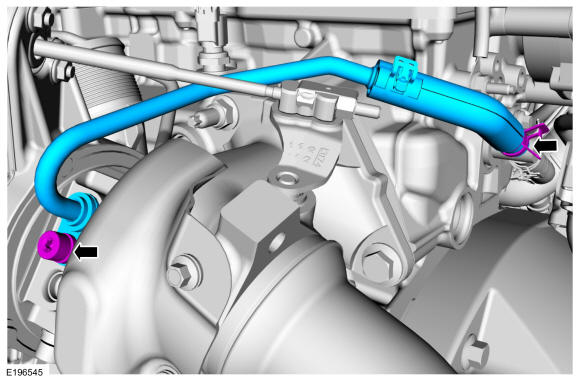

Install and connect the turbocharger coolant return tube and clamp, then install and tighten the turbocharger coolant return tube bolt.

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

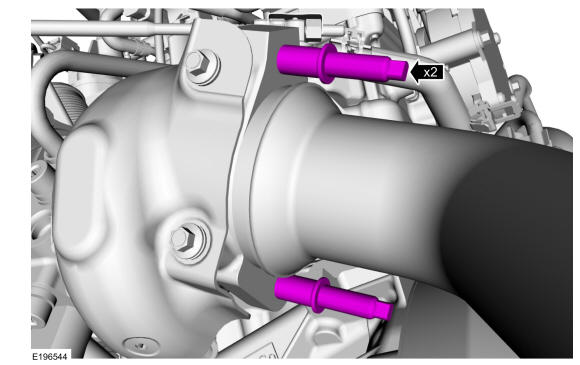

- Apply high temperature nickel anti-seize lubricant to the turbocharger exhaust flange studbolt threads.
- Install and tighten the turbocharger exhaust flange studbolts.
  Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
Install and evenly tighten the turbocharger exhaust flange nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the left charge air cooler intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
Install the left front fender splash shield. Refer to: Fender Splash Shield .
If equipped, install the skid plate or splash shield, then install and tighten the bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the transmission housing cover, then install and tighten the retainers.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Fill the cooling system. Refer to Engine Cooling System Draining, Vacuum Filling And Bleeding
Install the engine appearance cover, then install and tighten the engine appearance cover retainers.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
Check and top off the engine oil level as needed. Refer to: Specifications .
Start and check for leaks.
