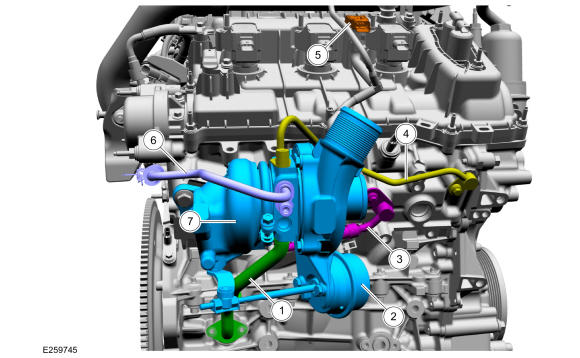

Turbocharger 2.7L EcoBoost RH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Turbocharger oil return tube RH |
| 2 |
Wastegate control actuator RH |
| 3 |
Turbocharger coolant supply tube RH |
| 4 |
Turbocharger oil supply tube RH |
| 5 |
Turbocharger wastegate vacuum sensor |
| 6 |
Turbocharger coolant return tube RH |
| 7 |
Turbocharger RH |
