Cylinder Head to Coolant Outlet Connector Hose Assembly: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

Left-hand (LH) side

  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  2. Remove the LH front wheel and tire. Refer to: Wheel and Tire .
  3. Remove the LH fender splash shields. Refer to: Fender Splash Shield .

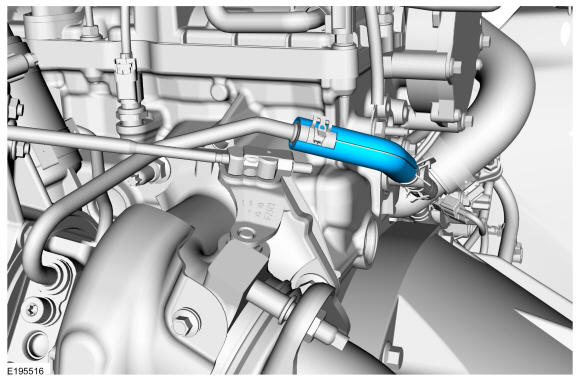

  4. Remove the heat sleeve from the coolant hose.
    GFD462086Courtesy of FORD MOTOR COMPANY
  5. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD462087Courtesy of FORD MOTOR COMPANY
  6. NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

    Release the clamp and disconnect the coolant hose. Remove the fastener then remove the cylinder head to coolant outlet connector hose assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Torque

    : 89 lb.in (10 Nm)

    GFD462088Courtesy of FORD MOTOR COMPANY
  7. Inspect the O-ring and replace if necessary.
    GFD458828Courtesy of FORD MOTOR COMPANY

    Right-hand (RH) side

  8. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  9. Remove the RH front wheel and tire. Refer to: Wheel and Tire .
  10. Remove the RH fender splash shield. Refer to: Fender Splash Shield .
  11. Remove the high-pressure fuel pump sound insulator.
    GFD462089Courtesy of FORD MOTOR COMPANY
  12. Disconnect the CKP sensor electrical connector.
    GFD462090Courtesy of FORD MOTOR COMPANY
  13. Remove the heat sleeve from the coolant hose.
    GFD462091Courtesy of FORD MOTOR COMPANY
  14. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD462092Courtesy of FORD MOTOR COMPANY
  15. NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

    Release the clamp and disconnect the coolant hose. Remove the fastener then remove the cylinder head to coolant outlet connector hose assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Torque

    : 89 lb.in (10 Nm)

    GFD462093Courtesy of FORD MOTOR COMPANY
  16. Inspect the O-ring and replace if necessary.
GFD458828Courtesy of FORD MOTOR COMPANY
