Coolant Pump: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  2. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
  3. Remove the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    1. Release the clip and disconnect the lower degas bottle hose.
    2. Remove the bolts.
    3. Position the degas bottle aside.

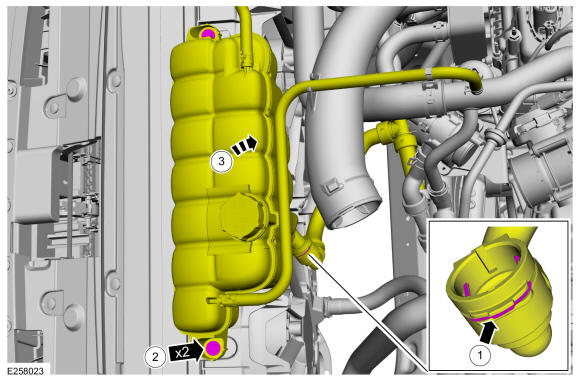

    GFD462062Courtesy of FORD MOTOR COMPANY
  5. Remove the EGR cooler. Refer to: Exhaust Gas Recirculation (EGR) Cooler .
  6. Loosen the coolant pump pulley bolts.

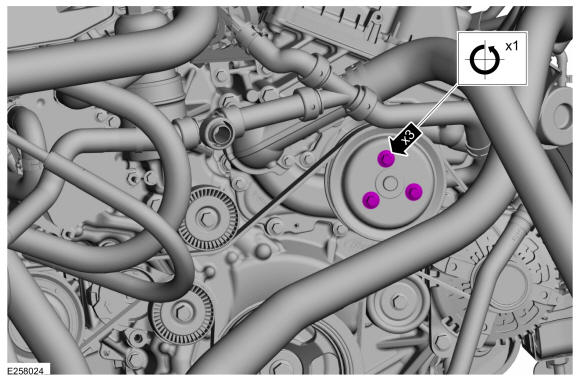

    GFD462063Courtesy of FORD MOTOR COMPANY
  7. Remove the accessory drive belt. Refer to: Accessory Drive Belt .
    NOTE: Completely remove the accessory drive belt to prevent coolant contamination.
  8. Remove the bolts and the coolant pump pulley.
    GFD462064Courtesy of FORD MOTOR COMPANY
  9. Remove the thermostat. Refer to: Thermostat .
    • Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    • Disconnect the coolant hose quick release coupling.

    GFD462065Courtesy of FORD MOTOR COMPANY
  11. NOTE: Use caution to prevent damaging the coolant inlet pipe grommet.

    Remove the bolts and the coolant pump.

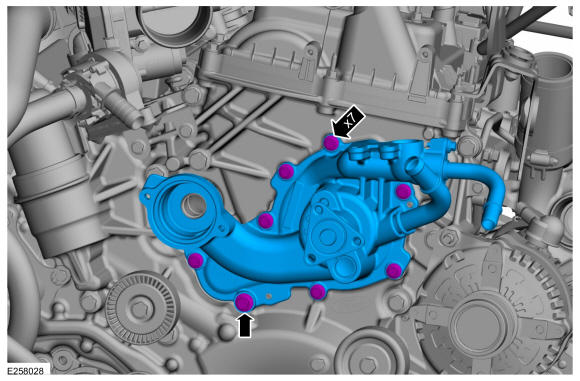

    GFD462066Courtesy of FORD MOTOR COMPANY
  12. Remove and discard the coolant pump gasket and seal.

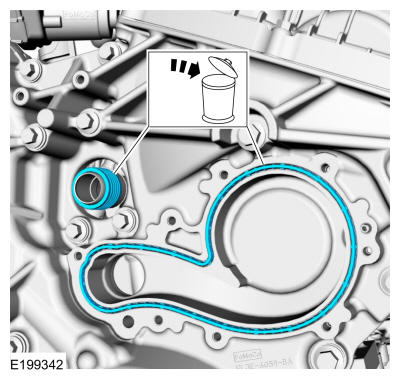

GFD462067Courtesy of FORD MOTOR COMPANY
