Coolant Pump: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

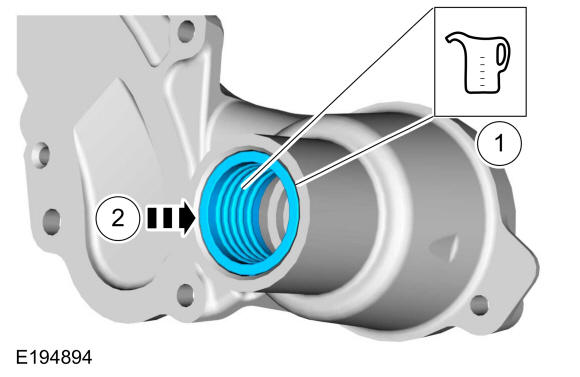

- Lubricate the inside and the outside diameter of the grommet with clean engine coolant. Refer to: Specifications .
- Install the grommet so it is flush with the leading edge of the coolant pump housing to aid in alignment during assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: Verify the front cover dowel pins are aligned to the coolant pump and that the coolant pump is fully seated prior to installing the fasteners.

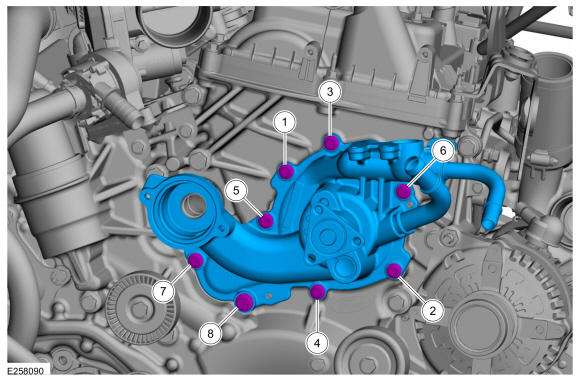

- Using a new gasket, install the coolant pump and the bolts.
  Torque:

  Fasteners 1-7: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°
- Torque
  : Fastener 8: 18 lb.ft (24 Nm)
Fig 1: Coolant Pump Tightening Sequence
Courtesy of FORD MOTOR COMPANY

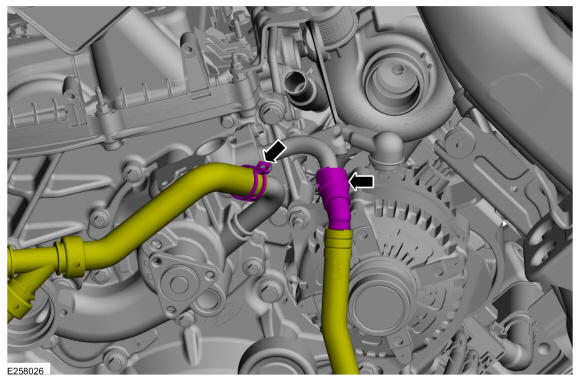

- Connect the coolant hose and position the clamp. Use the General Equipment: Hose Clamp Remover/Installer
- Connect the coolant hose quick release coupling.
Courtesy of FORD MOTOR COMPANY
Install the thermostat. Refer to: Thermostat .

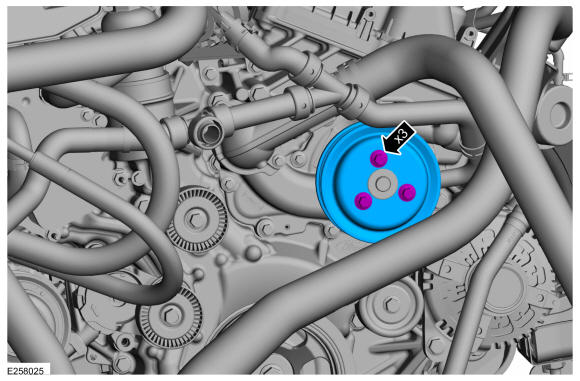

Position the coolant pump pulley and install the fasteners finger tight.

Courtesy of FORD MOTOR COMPANY
Install the accessory drive belt. Refer to: Accessory Drive Belt .

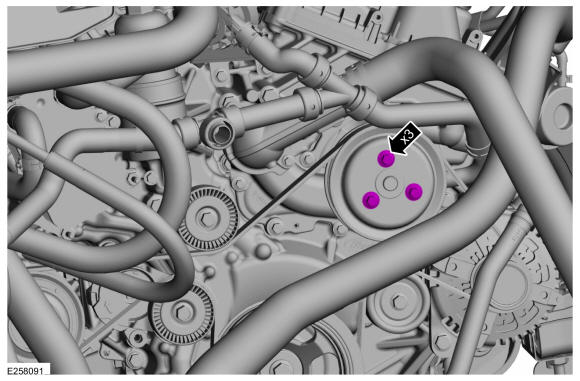

Tighten the coolant pump pulley fasteners.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the EGR cooler. Refer to: Exhaust Gas Recirculation (EGR) Cooler .

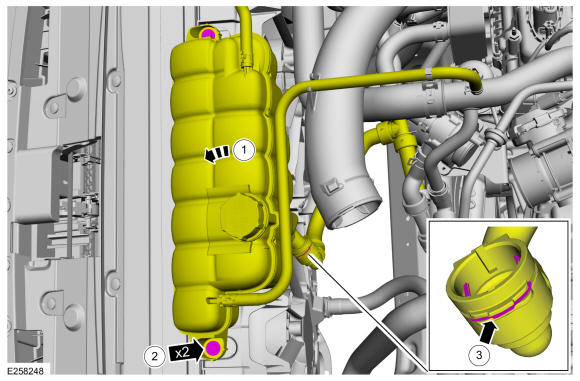

1. Position back the degas bottle.
2. Install the bolts.
  Torque

  : 62 lb.in (7 Nm)
3. Connect the lower degas bottle hose.
Courtesy of FORD MOTOR COMPANY
Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
