Coolant Outlet Connector: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the direct injection fuel rail LH. Refer to: Direct Injection Fuel Rail LH .
- Remove the direct injection fuel rail RH. Refer to: Direct Injection Fuel Rail RH .
- Remove the coolant pump. Refer to: Coolant Pump .
- Release the clamp and disconnect the coolant hose. Remove the knock sensor harness retainer from the fastener stud. Use the General Equipment: Hose Clamp Remover/Installer
- Release the clamps and disconnect the coolant hoses. Remove the fasteners and the coolant outlet connector and inlet pipe assembly. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: This step is only necessary when installing a new component.
Separate the coolant inlet pipe from the coolant outlet connector. Inspect the grommet and replace if necessary.

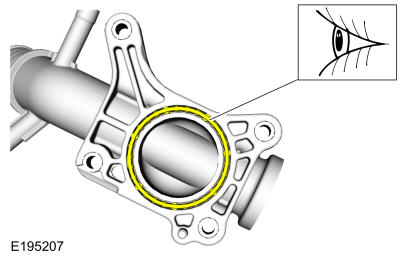

- Inspect the coolant outlet connector O-ring and replace if necessary.
