Throttle Body: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

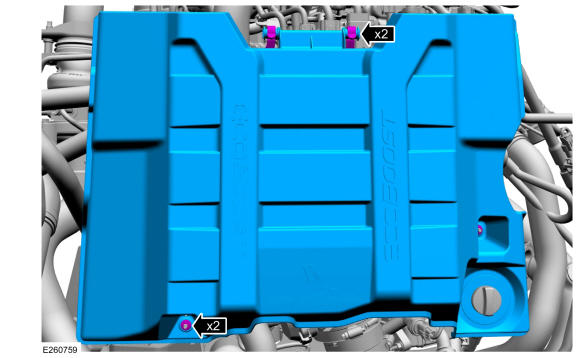

- Remove the engine appearance cover retainers, then remove the engine appearance cover.
- Remove the charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
-

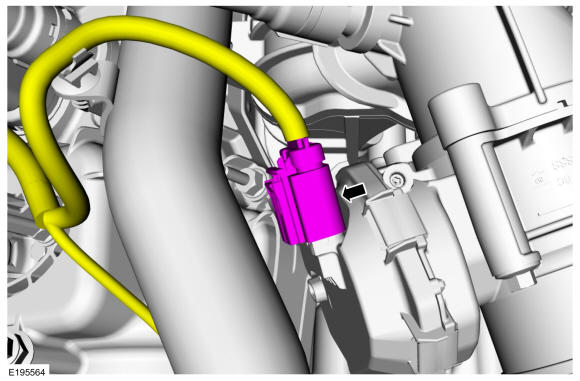

NOTE: When disconnecting the throttle body electrical connector disengage the red locking tab on the throttle body electrical connector by sliding it to the rear of the throttle body electrical connector, away from the throttle body. Squeeze the throttle body electrical connector while removing.
Disconnect the throttle body electrical connector.

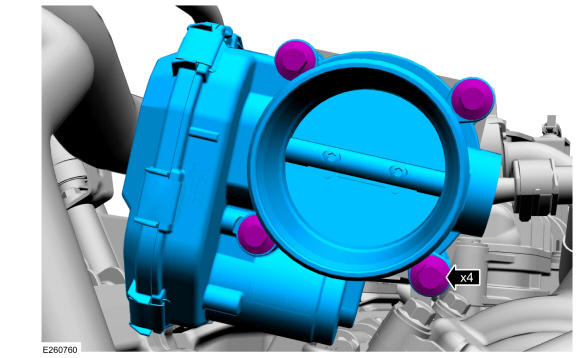

- Remove the throttle body bolts and then remove the throttle body.
