High-Pressure Fuel Pump: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

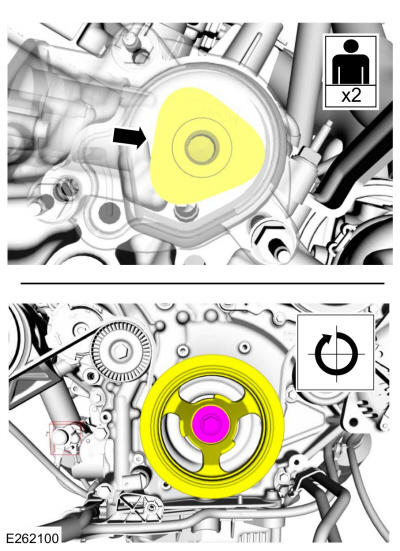

  1. NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.
    NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

    With the help of an assistant, using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

    GFD462378Courtesy of FORD MOTOR COMPANY

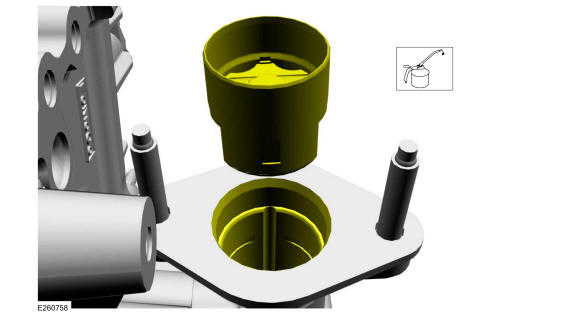

  2. Apply clean engine oil to the high-pressure fuel pump drive unit bore, the drive lobe and the roller tappet. Refer to: Specifications .
    GFD462379Courtesy of FORD MOTOR COMPANY

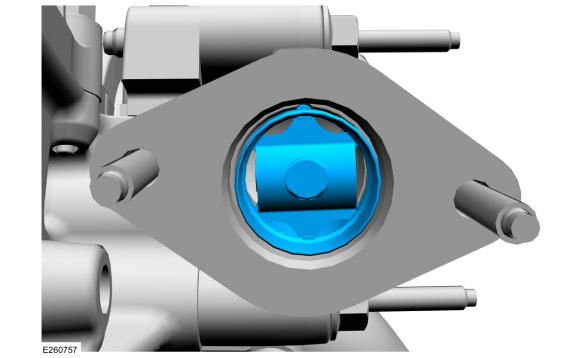

  3. NOTE: Align the notch on the high-pressure fuel pump tappet and with the groove in the high-pressure fuel pump drive unit bore.

    Install the high-pressure fuel pump tappet.

    GFD462377Courtesy of FORD MOTOR COMPANY
  4. NOTE: Apply clean engine oil to the high-pressure fuel pump O-ring seals.

    Install a new high-pressure fuel pump O-ring seal and lubricate with clean engine oil. Refer to: Specifications .

    GFD460755Courtesy of FORD MOTOR COMPANY

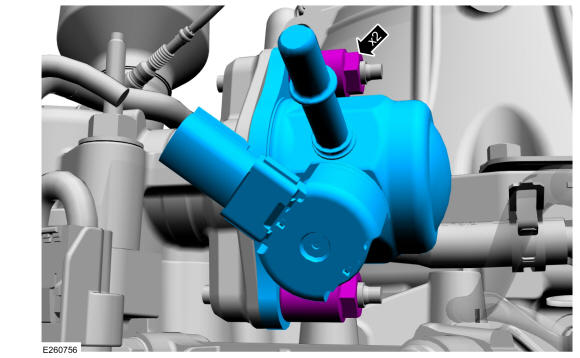

  5. Install the high-pressure fuel pump, then install and finger tighten the high-pressure fuel pump nuts. Alternately tighten each of the high-pressure fuel pump nuts one complete revolution until seated. Then tighten the fuel high-pressure fuel pump nuts in the following 2 stages.

    Torque

    :Stage 1: 177 lb.in (20 Nm) | Stage 2: 45 deg.

    GFD462376Courtesy of FORD MOTOR COMPANY
  6. NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.
    NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.
    G00468730Courtesy of FORD MOTOR CO.

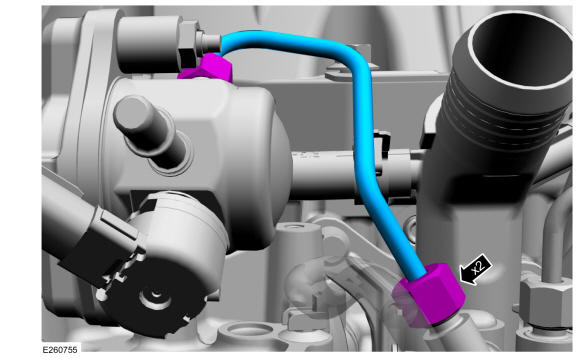

    NOTE: Make sure that a new high-pressure fuel pump to fuel rail high-pressure fuel tube is installed.

    Install the high-pressure fuel pump to fuel rail high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

    Torque

    :Stage 1: 62 lb.in (7 Nm) | Stage 2: 89 lb.in (10 Nm) | Stage 3: Tighten an additional : 25 deg.

    GFD462380Courtesy of FORD MOTOR COMPANY

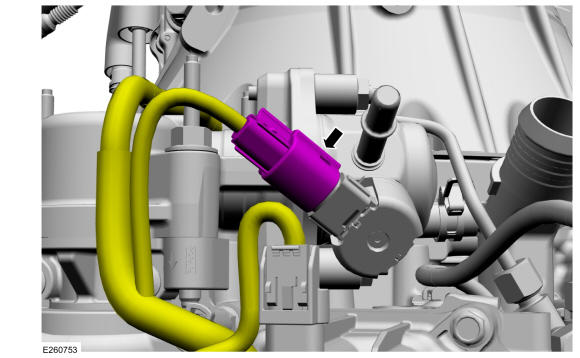

  7. Connect the high-pressure fuel pump electrical connector.
    GFD462374Courtesy of FORD MOTOR COMPANY

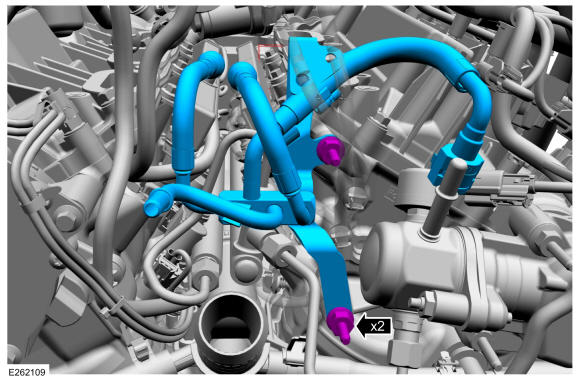

  8. Install the fuel supply manifold, then install and tighten the retainers.

    Torque

    : 89 lb.in (10 Nm)

    GFD462373Courtesy of FORD MOTOR COMPANY

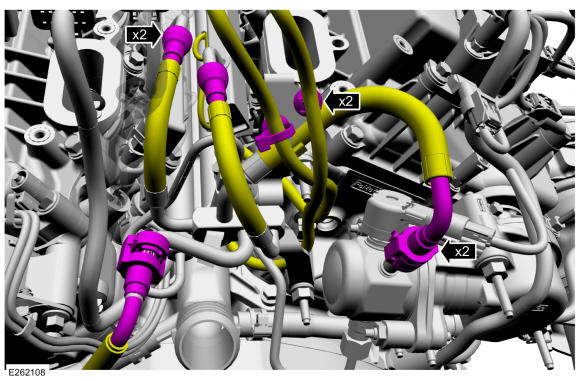

  9. Connect the fuel supply spring lock coupling. Connect the fuel supply quick connect couplings. Attach the wire harness retainers. Refer to: Spring Lock Couplings . .
    GFD462372Courtesy of FORD MOTOR COMPANY
  10. Install the spring lock coupling retaining clips.
    GFD462371Courtesy of FORD MOTOR COMPANY
  11. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

    Install the fuel injection pump noise insulator.

    GFD462370Courtesy of FORD MOTOR COMPANY
  12. Install the high-pressure fuel pump shield, then install and tighten the retainers.

    Torque

    : 89 lb.in (10 Nm)

    GFD462369Courtesy of FORD MOTOR COMPANY
  13. Attach the wiring harness retainers.
    GFD462368Courtesy of FORD MOTOR COMPANY

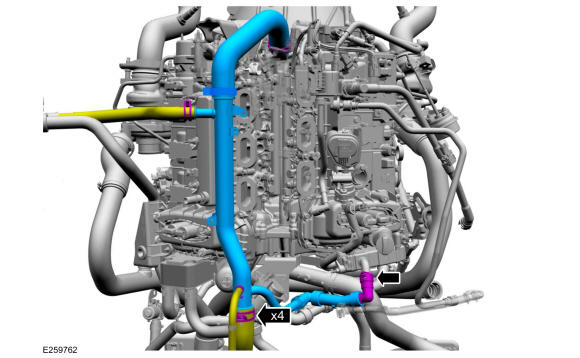

  14. Install the coolant tube, then connect the coolant hoses and the coolant hose clamps. Connect the quick release coupling. Refer to QUICK RELEASE COUPLING
    GFD462367Courtesy of FORD MOTOR COMPANY
  15. Install the intake manifold. Refer to: Intake Manifold .
  16. Connect the battery negative cable. Refer to: Battery Disconnect and Connect .
  17. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  18. Fill and bleed the cooling system. Refer to ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING
