High-Pressure Fuel Pump Drive Unit: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the mating faces are clean and free of foreign material.

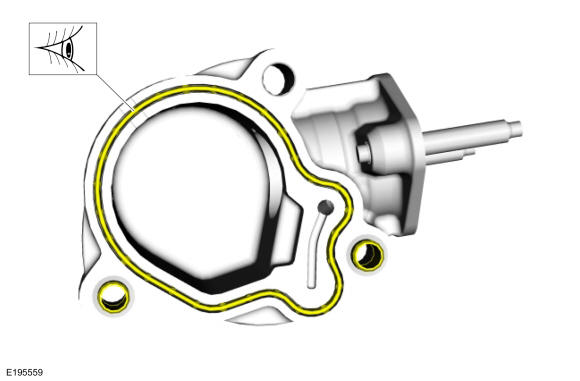

Inspect and replace the high-pressure fuel pump drive unit gasket as needed.

Courtesy of FORD MOTOR COMPANY

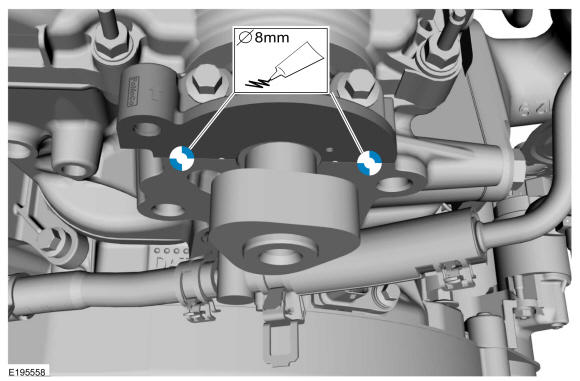

Apply 8 mm dots of sealant to the camshaft bearing cap and cylinder head seam as shown.
Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel pump drive unit, then install and tighten the high-pressure fuel pump drive unit studbolts in the following 2 stages.
Torque

:Stage 1: 177 lb.in (20 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
