Cooling Fan Drive Assembly: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Vehicle with dual generators shown in illustration, single generator similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling fan. REFER to: Cooling Fan .

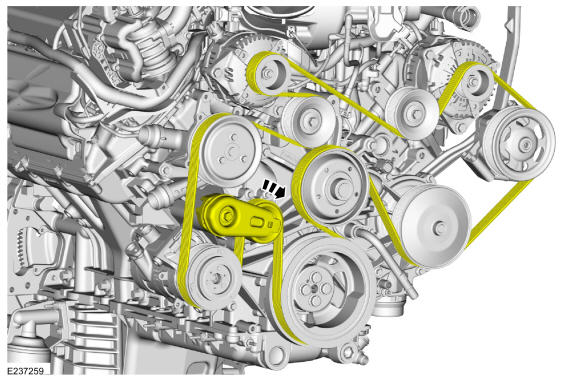

- Rotate the accessory drive belt tensioner clockwise and position aside the accessory drive belt.
- Remove the bolt and the accessory drive belt idler pulley.
Torque: 35 lb.ft (47.5 Nm)

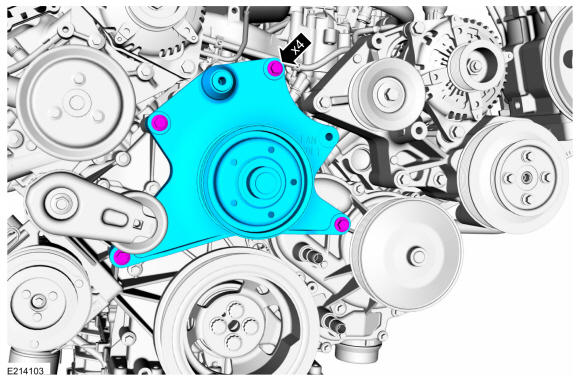

- Remove the bolts and the cooling fan drive assembly.
