Cooling Fan Drive Assembly: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooling fan drive assembly and tighten the bolts in this sequence.

    Torque: 18 lb.ft (25 Nm)

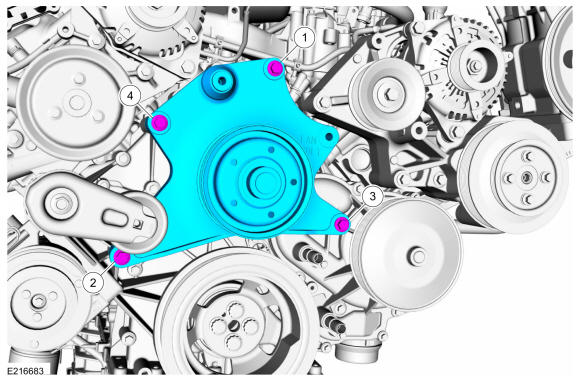

    Fig 1: Cooling Fan Drive Assembly Tightening Sequence
    GFD203672Courtesy of FORD MOTOR COMPANY
  2. NOTE: For additional information, refer to Accessory Drive in the Accessory Drive - Component Location  for correct drive belt routing.

    To install, reverse the removal procedure. REFER to: Accessory Drive - Component Location .
