Timing Chain: Removal

RH and LH timing chains

1. Remove the engine front cover. Refer to: Engine Front Cover .
2. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

   Install the original crankshaft pulley bolt.

   Courtesy of FORD MOTOR COMPANY

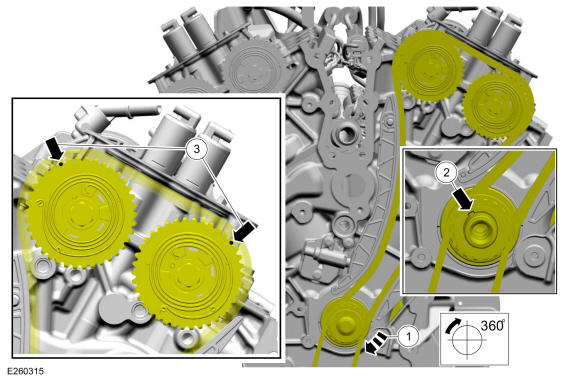

3. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
   1. Rotate the crankshaft clockwise.
   2. Position the crankshaft sprocket keyway at the 11 o'clock position.
   3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

   Courtesy of FORD MOTOR COMPANY

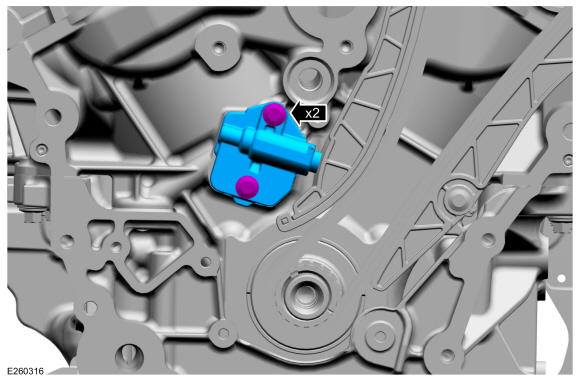

4. Remove the bolts and the RH timing chain tensioner.

   Courtesy of FORD MOTOR COMPANY

5. Remove the RH timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

6. Remove the bolts and the RH timing chain guide.

   Courtesy of FORD MOTOR COMPANY

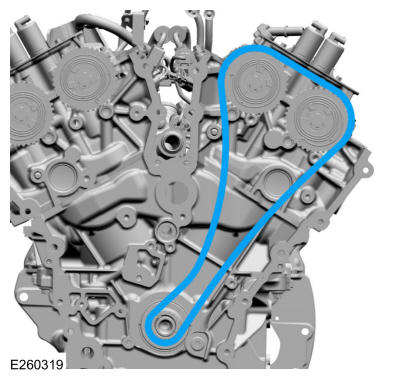

7. Remove the RH timing chain.

   Courtesy of FORD MOTOR COMPANY

8. Remove the original crankshaft pulley bolt.

   Courtesy of FORD MOTOR COMPANY

9. Remove the timing chain sprocket.

   Courtesy of FORD MOTOR COMPANY

   LH timing chain

10. Install the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.
    NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12:30 (exhaust) positions.

    Courtesy of FORD MOTOR COMPANY

12. Remove the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

13. Slide the oil pump drive belt off of the crankshaft sprocket and remove the belt.

    Courtesy of FORD MOTOR COMPANY

14. Remove the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

15. Remove the bolts and the LH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

16. Remove the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

17. Remove the bolts and the LH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

18. Remove the LH timing chain.

    Courtesy of FORD MOTOR COMPANY

19. Remove the timing chain sprocket. Remove the timing chain sprocket.

Courtesy of FORD MOTOR COMPANY
